DDD-E3 31.01-32.10-DTL

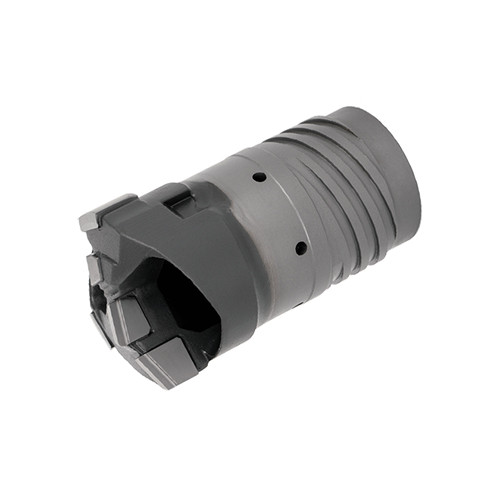

Deep double tube drills with external 4 start thread connection and brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price
Toote spetsifikatsioonid
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 31.01 mm |
| Connection Diameter Machine Side (DCONMS) | 28 mm | Cutting Diameter Maximum (DCX) | 32.1 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 63.5 mm | Body Material | Steel |
| Connection Thread Size (Ts) | TDO-I6 | Unit | M |
Toote omadused
| FamilyDesc | Deep double tube drills with external 4 start thread connection and brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials Ordering example: DDD-E3 47.10 OT-P0 For quotation form and user guide, click on More Info |
