CXXNR 20-AD-03/04-JHP

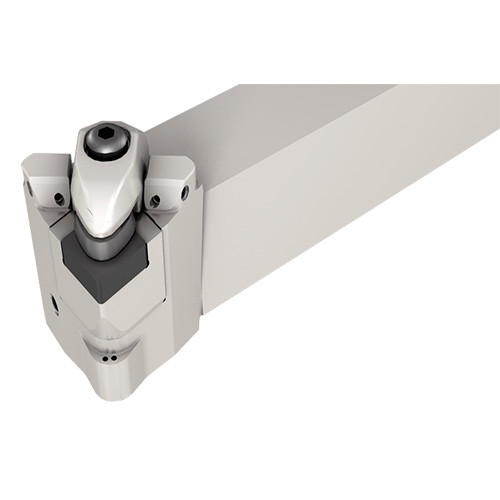

Square turning tools with a channel for high-pressure coolant carrying ceramic indexable round and rhombic inserts, mounted on cartridges.
Price: Log in For Price
Toote spetsifikatsioonid

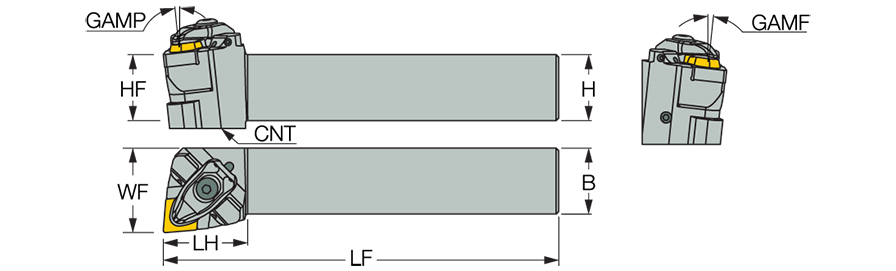

| Shank Height (H) | 1-1/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Width (B) | 1-1/4″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.3″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-3/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Application | | Ext. 80° Diamond 95° Approach | Ext. Round Face & Turn | |
Toote omadused
| FamilyDesc | Square turning tools with a channel for high-pressure coolant carrying ceramic indexable round and rhombic inserts, mounted on cartridges. | FamilyName | CXXNR/L-AD-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
2.8550
Name
General Indexable Turning Tools
FamilyName
CXXNR/L-AD-JHP
BrandName
Iscar
