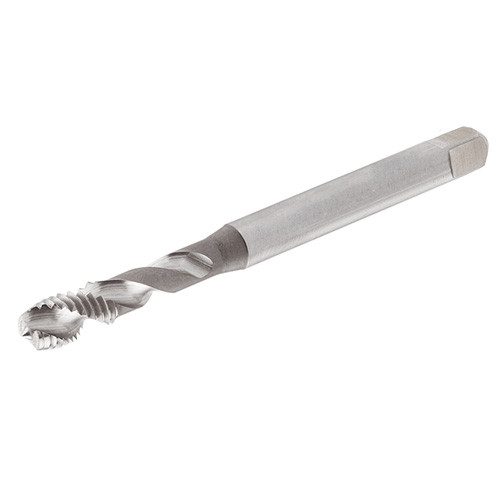

TPSN UNC 3/4-10-M HETI
HSSE 5% Co Spiral Flute Machine Taps Unified Coarse Threads, for a Wide Range of Materials
Price: Log in For Price
Toote spetsifikatsioonid

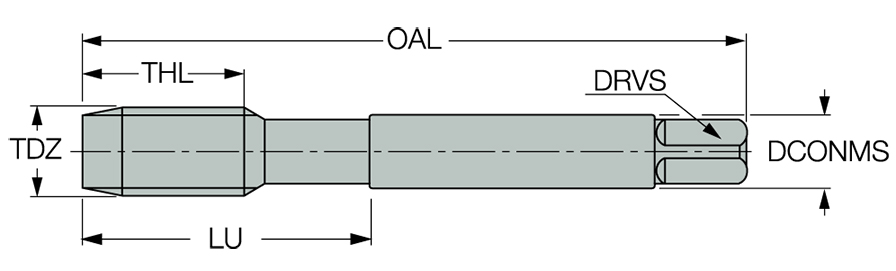

| Thread Diameter Size (TDZ) | UNC 3/4 | Coating | TiN |
| Threads per Inch (TPI) | 10 | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Grade | HETI |
| Thread Cutting Part Length (THL) | 30 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Body Material | HSS |
| Flute Count (NOF) | 4 | Drive Size (DRVS) | 11 mm |
| Cutting Edge Material | HSS | Thread Size | UNC 3/4 - 10 |
| Standard | DIN 376 | Unit | M |
| Tool Type | Machine Blind Hole Taps |
Toote omadused
| FamilyDesc | HSSE 5% Co Spiral Flute Machine Taps Unified Coarse Threads, for a Wide Range of Materials | COO | Hungary |
Shipping Info
PackageWeight
0.1460
