MM S-A-L50/30-C500-T08-WH
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price
Toote spetsifikatsioonid

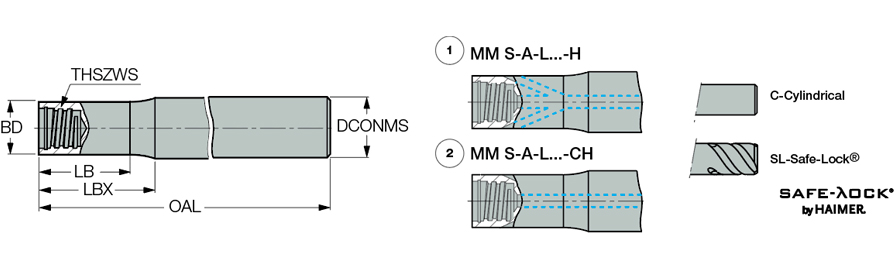

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Body Length (LB) | 2.966″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 5″ | Rotational Speed Maximum (RPMX) | 20610 Rev/min |
| Body Length Maximum (LBX) | 3″ | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.48″ | Unit | I |
Toote omadused
| FamilyDesc | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | FamilyName | MM S-A (stepped shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.5754
Name
Solid End Mill Shanks
FamilyName
MM S-A (stepped shanks)
BrandName
Iscar
