Toote spetsifikatsioonid

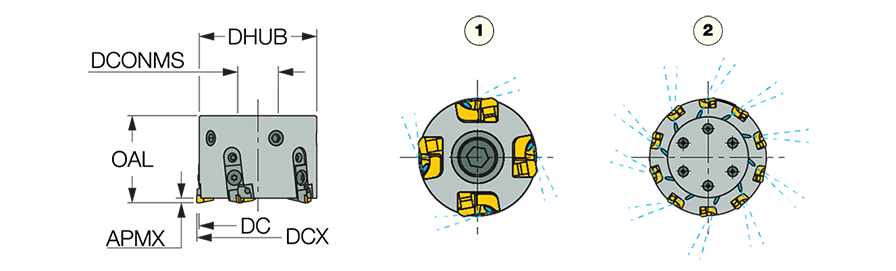

| Cutting Diameter (DC/DCX) | 51.4 mm | Hub Diameter (DHUB) | 49.4 mm |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 51.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 3 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | 90° Facemills for Al. & HTA |
| Overall Length (OAL) | 55 mm | Unit | M |
Toote omadused

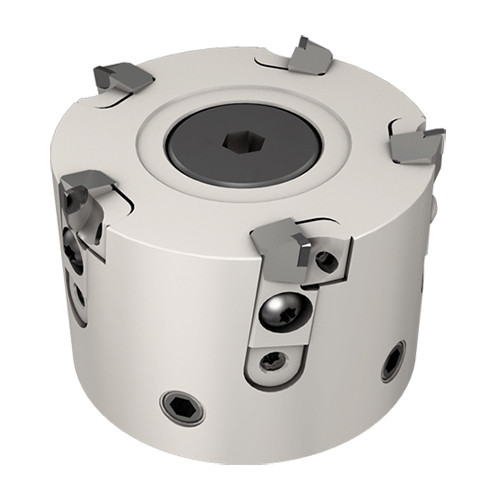

| FamilyDesc | Face mills with adjustable cartridges for high speed machining of aluminum alloys, cast iron and carbon fiber. Lightweight body, user-friendly adjustment system, easy axial edge positioning for up to 0.002 mm accuracy, convenient balancing | FamilyName | SPN-CA IT |
| COO | Italy | BrandName | Iscar |
Shipping Info
Name
Indexable Face Mills
FamilyName
SPN-CA IT
BrandName
Iscar
