Toote spetsifikatsioonid

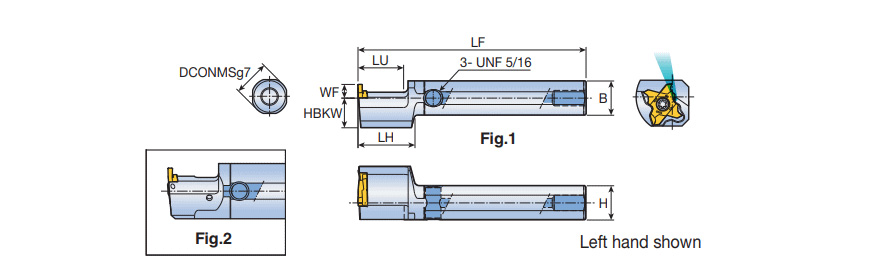

| Shank Height (H) | 24 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 24 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Head Length (LH) | - | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Insert Seat Size Code (SSC) | 20 |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | Tools for Swiss Machines | | Master Insert Identification (MIID) | TQS 20-2.00-0.10-R |
| Body Material | Steel | Functional Width (WF) | 10 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 20 | Unit | M |
Toote omadused

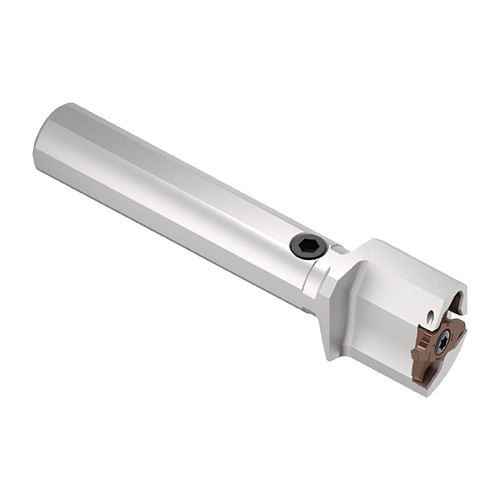

| FamilyDesc | QUAD-RUSH high pressure coolant sleeve holders with TQ..20-R inserts for external grooving | FamilyName | TMS-TQHL-TB |
| Remarks | TQ... 20 R insert for L hand toolholder | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
PackageWeight
0.0000
Name
Parting Off Indexable Holders
FamilyName
TMS-TQHL-TB
BrandName
Taegutec
