Toote spetsifikatsioonid

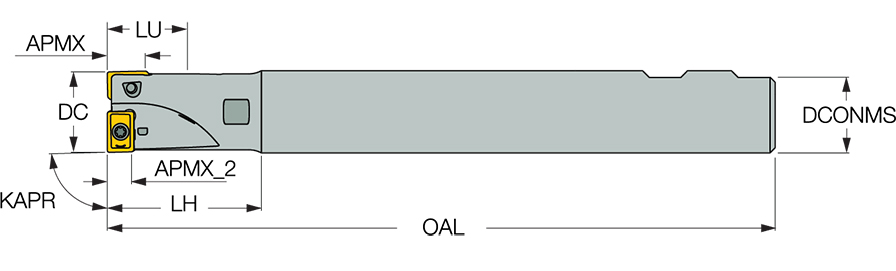

| Cutting Diameter (DC/DCX) | 5/8″ | Master Insert Identification (MIID) | MDR ANMU 07 |
| Cutting Diameter (DC) | 5/8″ | Head Length (LH) | 1″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.285″ | Usable Length (LU) | 0.4724″ |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Inch |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Side Plunging | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Unit | I |
Toote omadused
| FamilyDesc | Multi-Function Endmill Cutters | FamilyName | MDR D-W-AN |
| Remarks | When drilling holes deeper than .2, it is recommended to use the pecking method (G83) For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.2954
Name
Indexable End Mills
FamilyName
MDR D-W-AN
BrandName
Iscar
