TPST M-3.5X0.6-G HENI
HSS straight flute machine taps - ISO metric coarse threads, according to DIN 13, for grey cast iron.
Price: Log in For Price
Toote spetsifikatsioonid

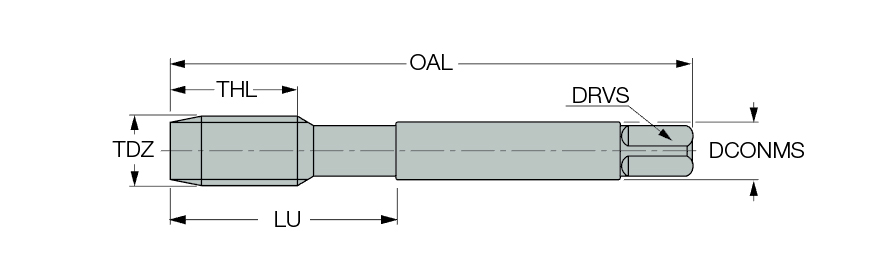

| Thread Diameter Size (TDZ) | M3.5 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 0.6 mm | Tool Type | Machine Blind Hole Taps |
| Thread Standard | THFT | | Drive Size (DRVS) | 3 mm |
| Overall Length (OAL) | 56 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 12 mm | Grade | HENI |
| Usable Length (LU) | 20 mm | Thread Size | M3.5 × 0.6 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Unit | M |
Toote omadused
| FamilyDesc | HSS straight flute machine taps - ISO metric coarse threads, according to DIN 13, for grey cast iron. | COO | Korea |
| Remarks | The material designation HE was recently changed to HENI. HENI and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
PackageWeight
0.0060
