SCD0321-236-0375ACP5N IC908

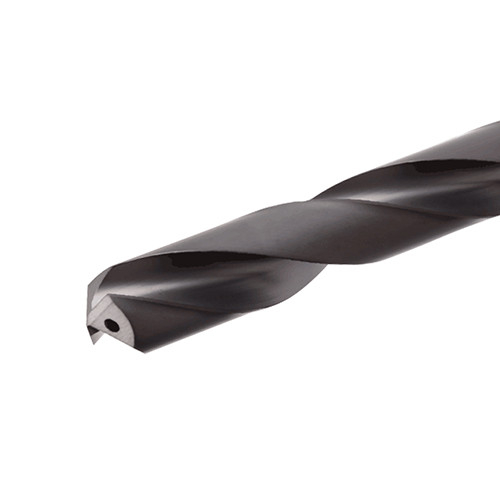

DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD.
Price: Log in For Price
Toote spetsifikatsioonid

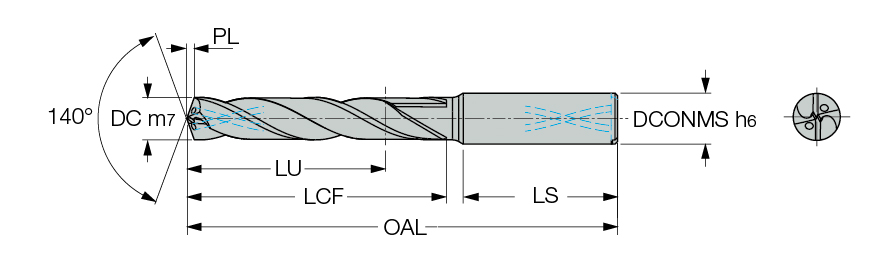

| Drill Bit Size / Cutting Diameter (DC) | 0.321″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.321″ | Grade | IC908 |
| Decimal Equivalent | 0.321″ | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 1.92″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 2.36″ |
| Application | | Drilling | | Overall Length (OAL) | 4.06″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.59″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | I |
Toote omadused
| FamilyDesc | DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD. | COO | Korea |
