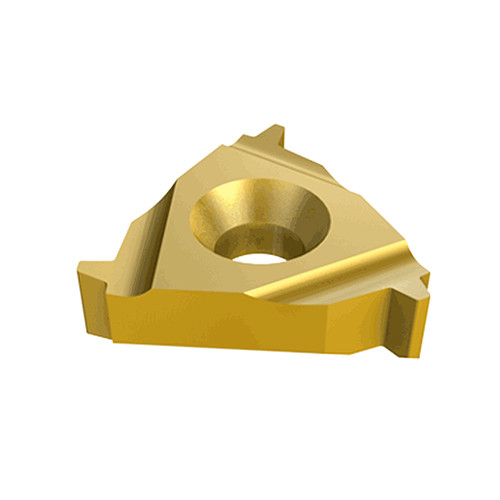

16ER 8 STACME IC908
External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness.
Price: Log in For Price
Toote spetsifikatsioonid
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

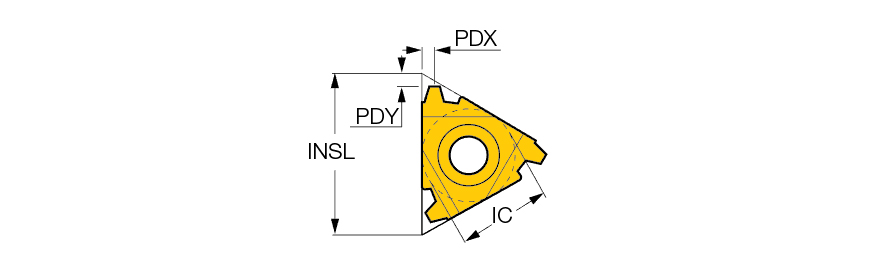

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 0.1 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | STAC29 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.7 mm |
| Application | | External Threading | |
Toote omadused
| FamilyDesc | External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness. | FamilyName | ER/L-STACME |
| Remarks | For Insert Identification System, click on More Info STUB ACME ASME/ANSI B1.8-1988 Class 2G | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0040
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-STACME
BrandName
Iscar
