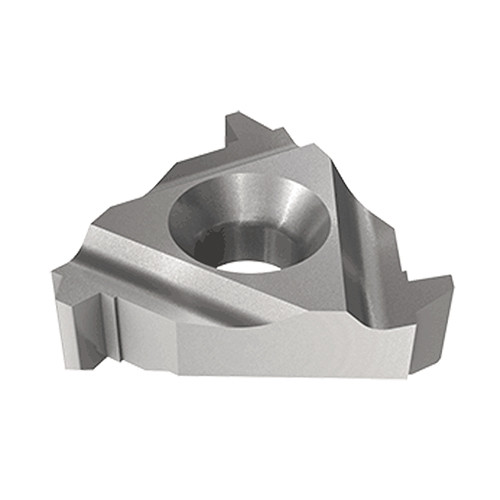

22ER 3 SAGE IC908
External buttress (DIN 513) thread for high force in one direction applications.
Price: Log in For Price
Toote spetsifikatsioonid
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

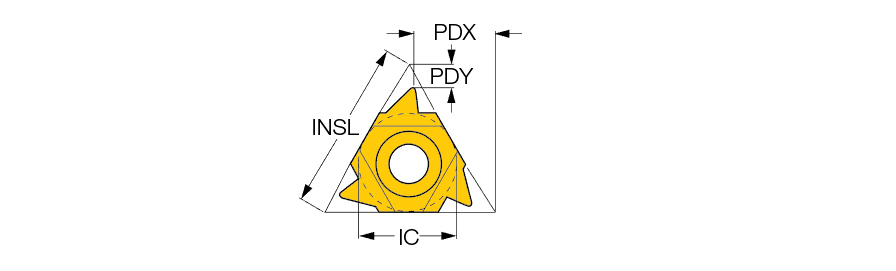

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Thread Pitch (TP) | 3 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | SAGE |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Threading | | Profile Distance EY (PDY) | 1.5 mm |
Toote omadused
| FamilyDesc | External buttress (DIN 513) thread for high force in one direction applications. | FamilyName | ER/L-SAGE |

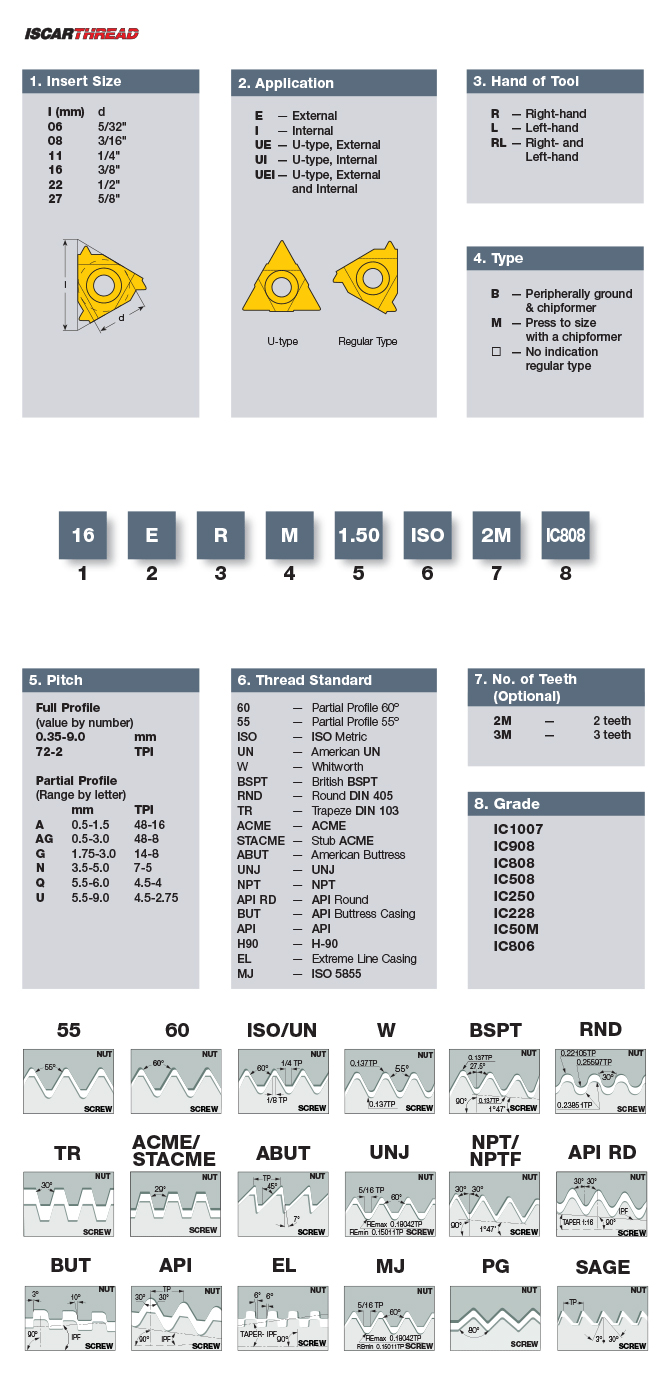

| Remarks | For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0118
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-SAGE
BrandName
Iscar
