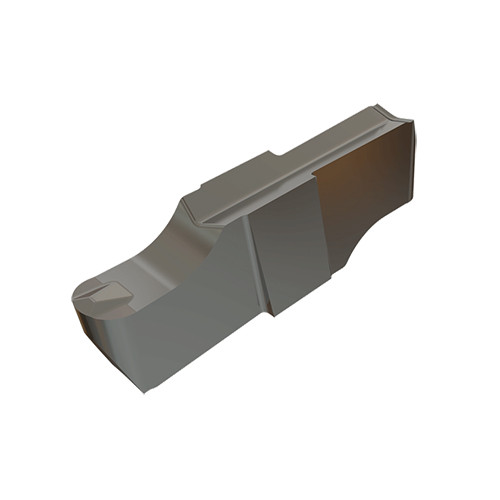

GIPI 2.39-1.20 IC20
Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm.
Price: Log in For Price
Toote spetsifikatsioonid

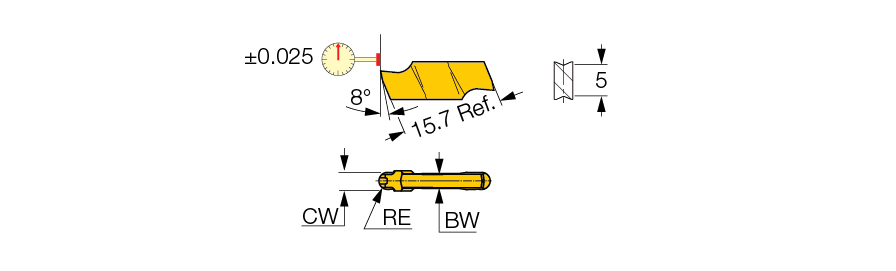

| Cutting Width (CW) | 2.39 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 1.2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Overall Length (OAL) | 15.7 mm | Chip Breaker Type | P |
| Insert Length (INSL) | 15.7 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 6.4 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Grade | IC20 | Insert Width (W1) | 2.4 mm |
| Application | | Int. Grooving (side limit) | | Unit | M |
Toote omadused
| FamilyDesc | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm. | FamilyName | GIPI (full radius CW<BW) |
| Remarks | The tool pocket should be modified DMIN for internal applications= 20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0036
Name
Parting Off Indexable Inserts
FamilyName
GIPI (full radius CW<BW)
BrandName
Iscar
