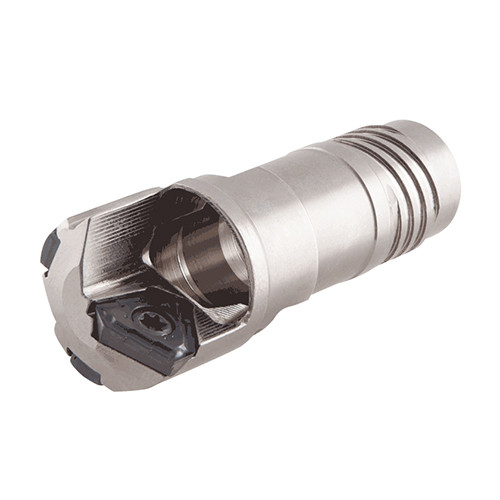

DSD-EF 28.71-31.00-FT
Deep single tube drills with external 4-start thread connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed
Price: Log in For Price
Toote spetsifikatsioonid

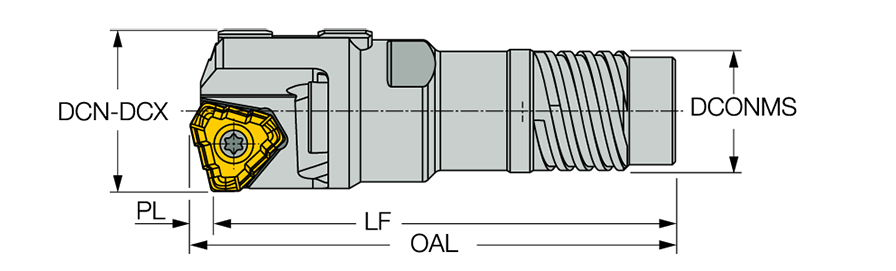

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 28.71 mm |
| Connection Diameter Machine Side (DCONMS) | 23.5 mm | Cutting Diameter Maximum (DCX) | 31 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 79.57 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Toote omadused
| FamilyDesc | Deep single tube drills with external 4-start thread connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed | COO | Japan |

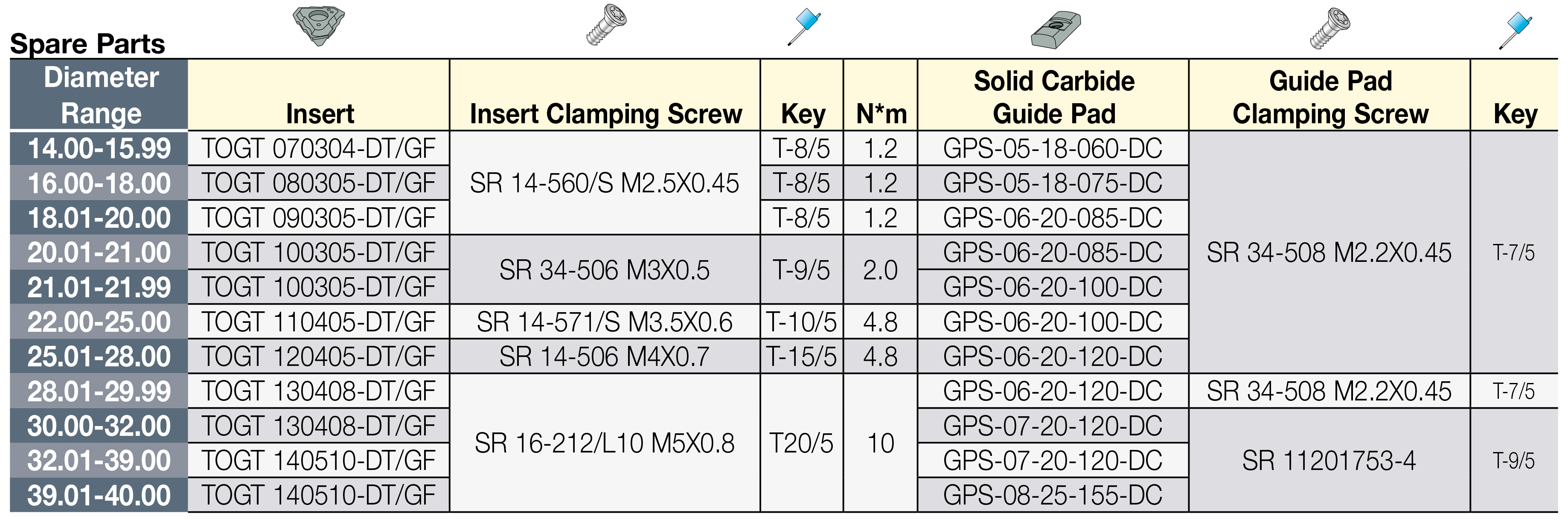

| Remarks | Each item in the attached catalog page represents a diameter range Inserts and guide pads to be ordered separately Ordering example: DSD-EF 16.50-FT Tube designation: D14.00 - 15.59 mm, External 2-start thread D15.60 - 40.00 mm, External 4-start thread For suitable pads and inserts see More Info |
