DSTR-EC 304.00-315.99

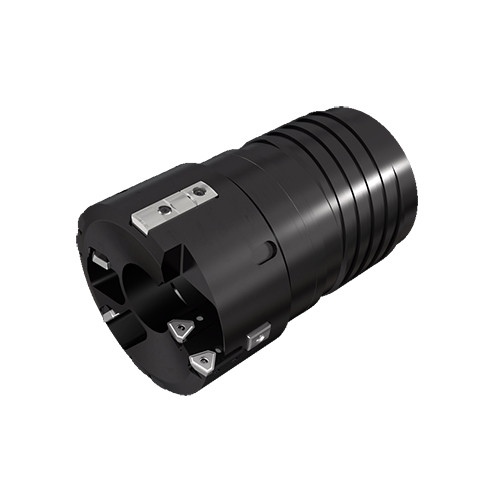

Single tube trepanning drills with outer 4-start thread connection, cartridges and adjustable diameter (100-328mm dia.)
Price: Log in For Price
Toote spetsifikatsioonid

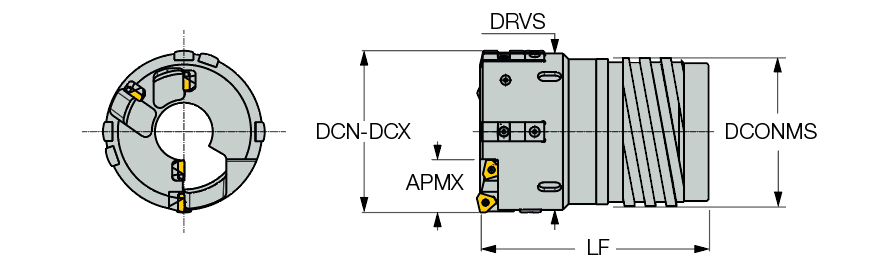

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 304 mm |
| Connection Diameter Machine Side (DCONMS) | 292 mm | Cutting Diameter Maximum (DCX) | 315.99 mm |
| Functional Length (LF) | 324 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I40 | Unit | M |
Toote omadused
| FamilyDesc | Single tube trepanning drills with outer 4-start thread connection, cartridges and adjustable diameter (100-328mm dia.) | COO | Japan |

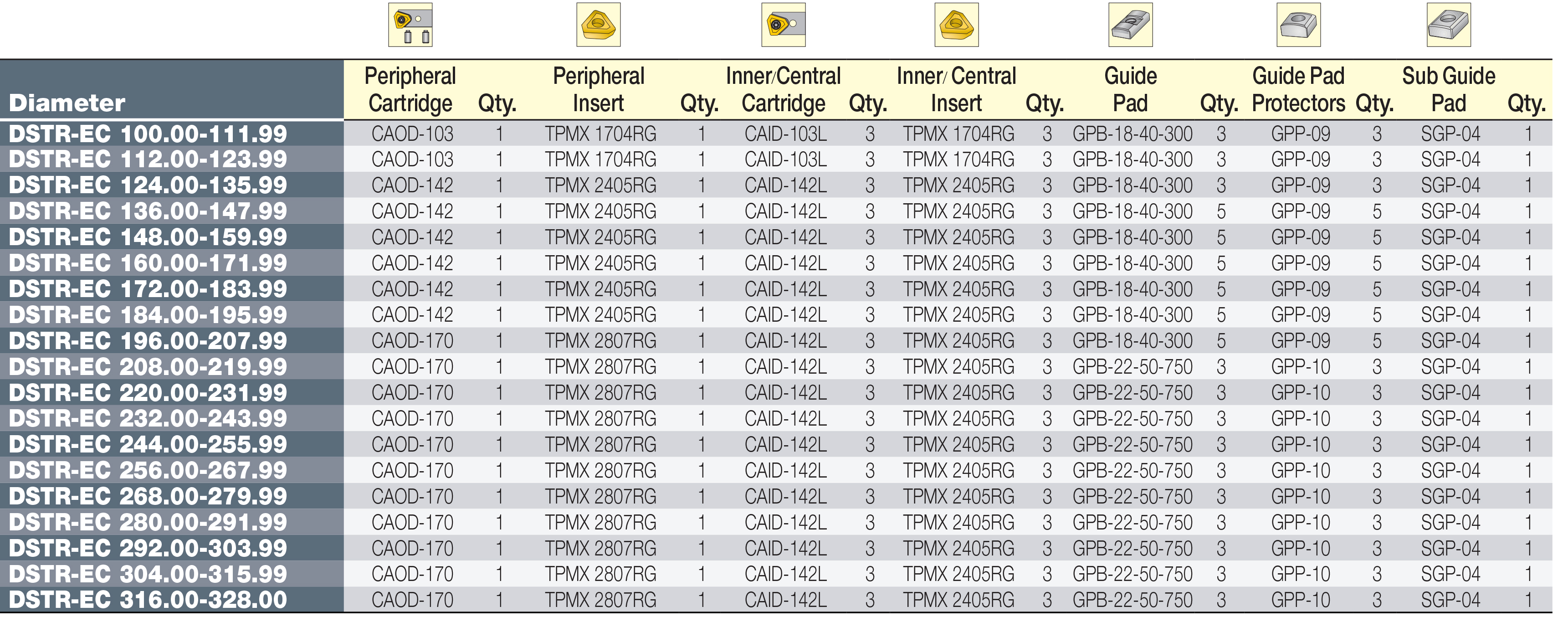

| Remarks | For spare parts and insert information, click More Info Ordering example: DSTR-EC 120.55 |
