DSD-IC 282.00-293.99

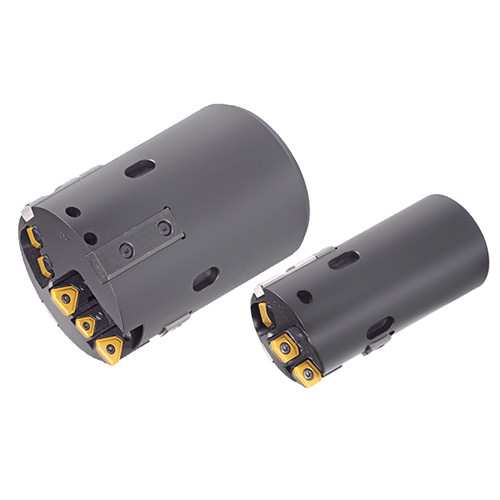

Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price
Toote spetsifikatsioonid

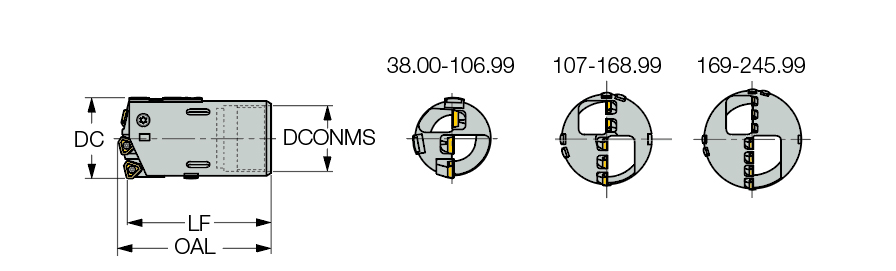

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 282 mm |
| Connection Diameter Machine Side (DCONMS) | 271 mm | Cutting Diameter Maximum (DCX) | 293.99 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 245 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Connection Thread Size (Ts) | TS-O41 |
Toote omadused
| FamilyDesc | Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |

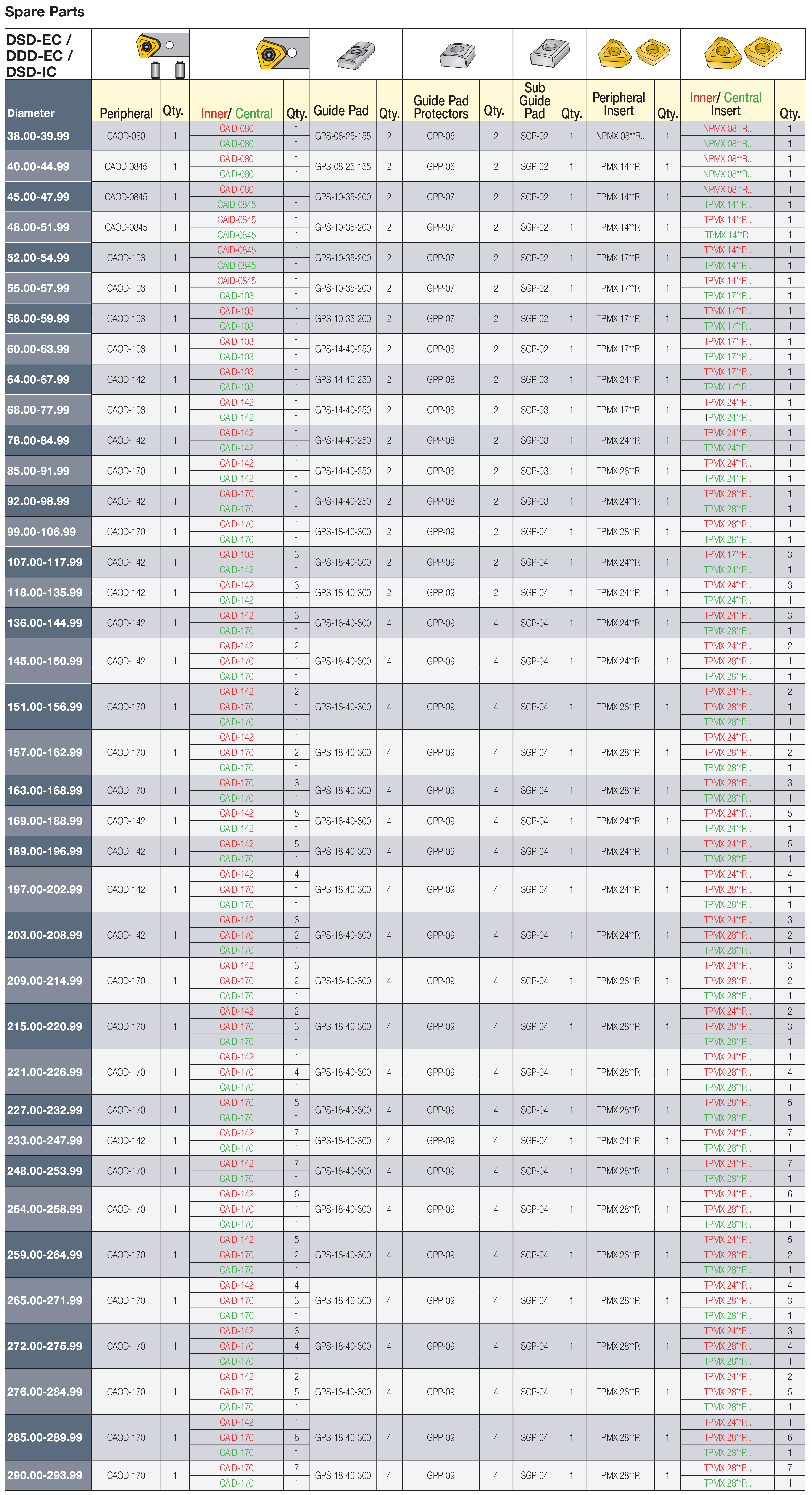

| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide,click on More Info Ordering example: DSD-IC 67.30 |
