D3N 0591-177-075R-3D

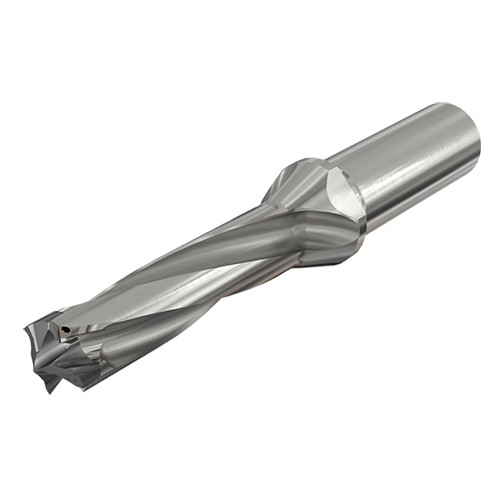

Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 3xD
Price: Log in For Price
Toote spetsifikatsioonid

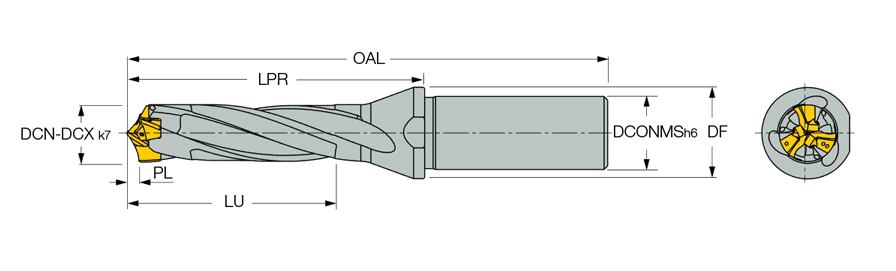

| Cutting Diameter (DC) | 0.591″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.908″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 150-IQ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Point Length (PL) | 0.1366″ |
| Insert Seat Size Code (SSC) | 15 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.591″ | Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Maximum (DCX) | 0.626″ | Decimal Equivalent | 0.591″ |
| Protruding Length (LPR) | 2.998″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 4.967″ | Unit | I |
| Shank Length (LS) | 1.97″ |
Toote omadused
| FamilyDesc | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
PackageWeight
0.4850
