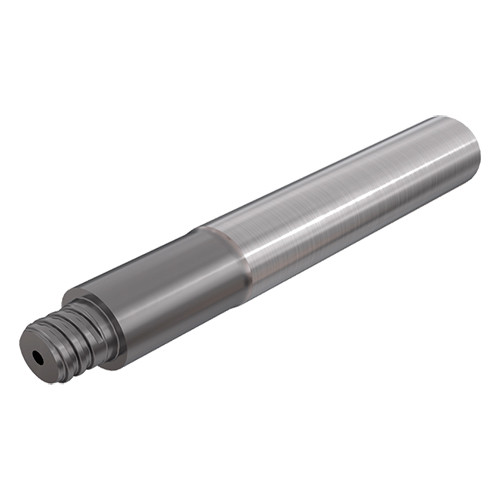

TS S-A-L90-C16-T10-C
SHANK-MASTER stepped cylindrical shanks with threaded adaptation for interchangeable solid carbide milling heads
Price: Log in For Price
Toote spetsifikatsioonid

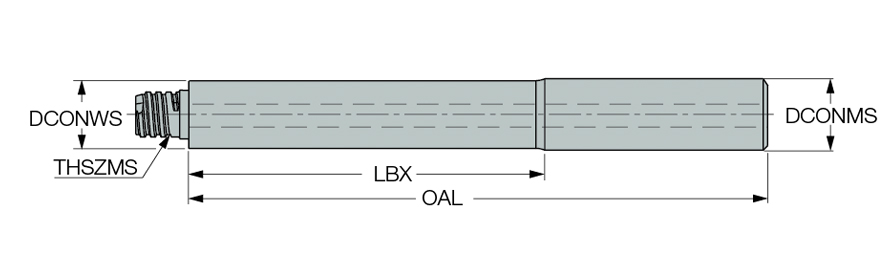

| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 40 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Unit | M |
| Body Diameter (BD) | 15.2 mm |
Toote omadused
| FamilyDesc | SHANK-MASTER stepped cylindrical shanks with threaded adaptation for interchangeable solid carbide milling heads | FamilyName | TS S-A |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.2630
Name
Solid End Mill Shanks
FamilyName
TS S-A
BrandName
Iscar
