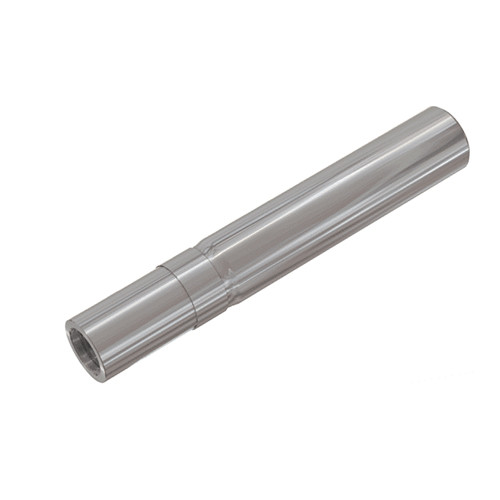

MM S-A-L075-C10-T06-N
MULTI-MASTER, stepped cylindrical shanks with parallel directed coolant for solid carbide milling heads.
Price: Log in For Price
Toote spetsifikatsioonid

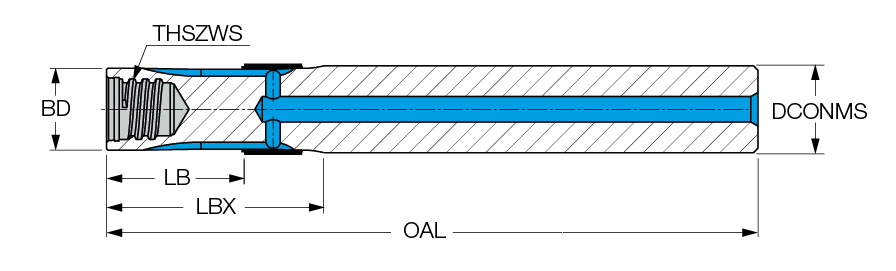

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Length (LB) | 18 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Overall Length (OAL) | 75 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 28 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks | Unit | M |
| Body Diameter (BD) | 9.6 mm |
Toote omadused
| FamilyDesc | MULTI-MASTER, stepped cylindrical shanks with parallel directed coolant for solid carbide milling heads. | FamilyName | MM S-A-N |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0500
Name
Solid End Mill Shanks
FamilyName
MM S-A-N
BrandName
Iscar
