MM HDF120-090-2T06 IC908
Interchangeable 2 flute solid carbide heads for upper and bottom chamfering
Price: Log in For Price
Toote spetsifikatsioonid
| Application | | Chamfering & Bottom Deburring | Countersinking | | Coating | TiAlN |

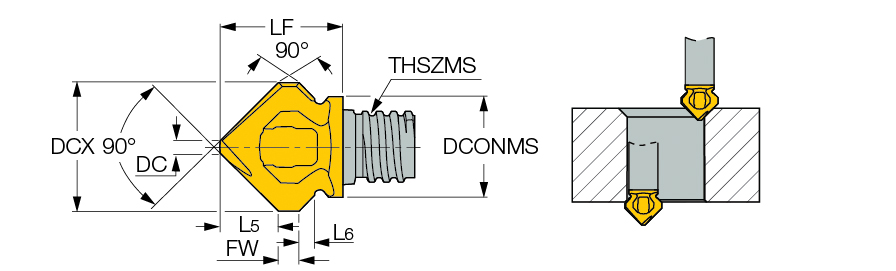

| Cutting Diameter (DC) | 11.8 mm | Profile Angle (PRFA) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.3 mm | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 11.2 mm | Body Material | Carbide |
| Overall Length (OAL) | 17.85 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Unit | M |
Toote omadused
| FamilyDesc | Interchangeable 2 flute solid carbide heads for upper and bottom chamfering | FamilyName | MM HDF |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0165
Name
Solid End Mill Heads
FamilyName
MM HDF
BrandName
Iscar
