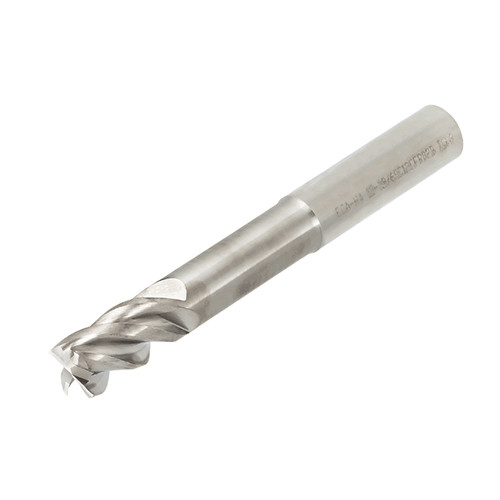

ECAI-H4R 312-625/0.9C01CF IC08
CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.
Price: Log in For Price
Toote spetsifikatsioonid

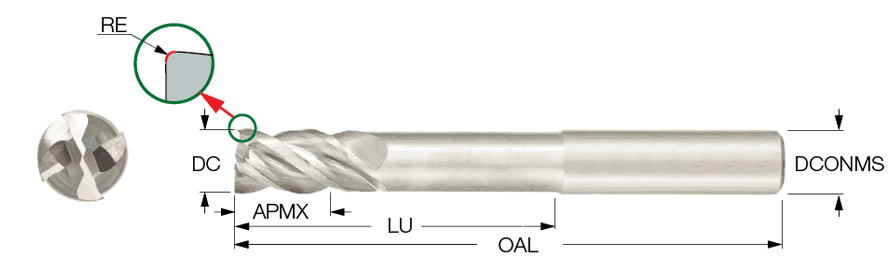

| Cutting Diameter (DC) | 0.312″ | Grade | IC08 |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Neck Diameter (DN) | 0.302″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.312″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 0.9″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.01″ | Unit | I |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Toote omadused
| FamilyDesc | CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing. | FamilyName | ECAI-H4R-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0904
Name
Square & Corner Radius End Mills
FamilyName
ECAI-H4R-CF
BrandName
Iscar
