Toote spetsifikatsioonid

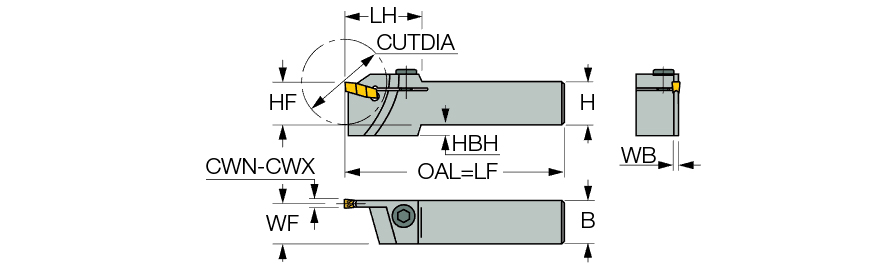

| Cutting Width Minimum (CWN) | 0.016″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.094″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.67″ | Body Material | Steel |
| Shank Height (H) | 1″ | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Functional Width (WF) | 0.97″ | Unit | I |
| Head Length (LH) | 1.3″ |
Toote omadused
| FamilyDesc | External holders for deep grooving and parting | FamilyName | GHGR/L |
| Remarks | For machining depth over .512, a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter Dmax For grooving a part with a diameter larger than CUTDIA, click on More Info For using TIP and GIVR/L inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.6204
Name

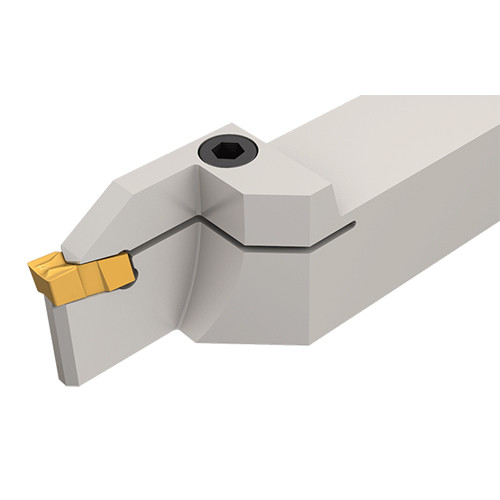

Groove/Turn Indexable Holders
FamilyName
GHGR/L
BrandName
Iscar
