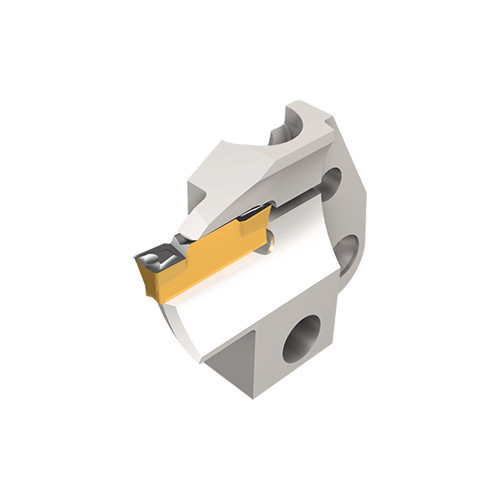

HFPAD 4R-58-T14
Adapters for face grooving and turning in the 25-800 mm diameter range. Part of the MODULAR-GRIP system
Price: Log in For Price
Toote spetsifikatsioonid

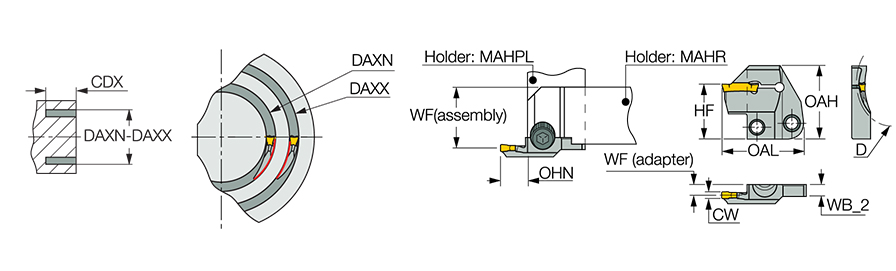

| Cutting Depth Maximum (CDX) | 14 mm | Overall Length (OAL) | 40.5 mm |
| Cutting Width (CW) | 4 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 4.8 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 4 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 4.5 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 88 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 58 mm | Unit | M |
Toote omadused
| FamilyDesc | Adapters for face grooving and turning in the 25-800 mm diameter range. Part of the MODULAR-GRIP system | FamilyName | HFPAD-4 |

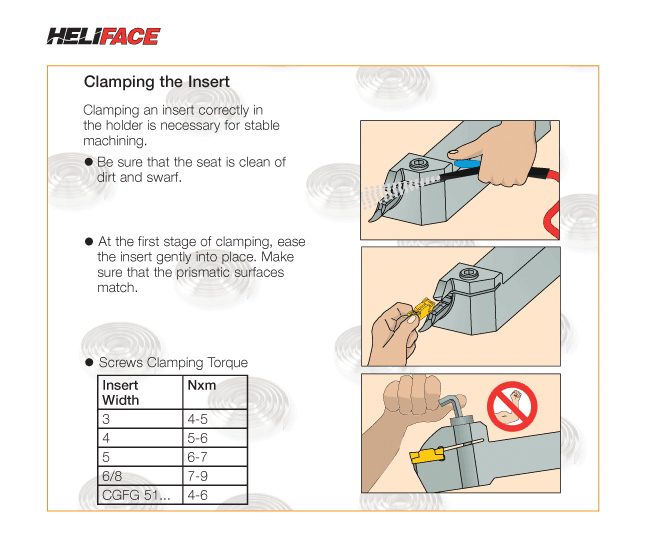

| Remarks | WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4..inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0420
Name
Face Groove/Turn Indexable Holders
FamilyName
HFPAD-4
BrandName
Iscar
Related Documentation
Inserts: GRIP 4...Y & 476-...Y, DGN 4003C/J can be used with right-hand adapters for grooving only
