Toote spetsifikatsioonid
| Overall Length (OAL) | 99.3 mm | Measurement Type | Metric |

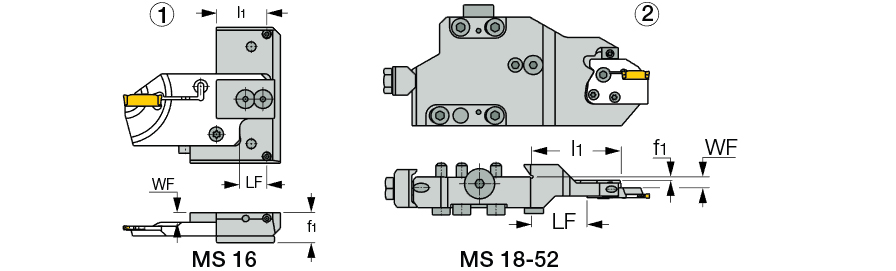

| Functional Length (LF) | 74.5 mm | Functional Width (WF) | 13.5 mm |
| Body Material | Steel | Tool Assembly Length (LTA) | 66.11 mm |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Toote omadused
| FamilyDesc | Toolholders for INDEX CNC multi-spindle machines with internal coolant supply for MODULAR-GRIP adapters. | FamilyName | MS##-##-MG-JHP |

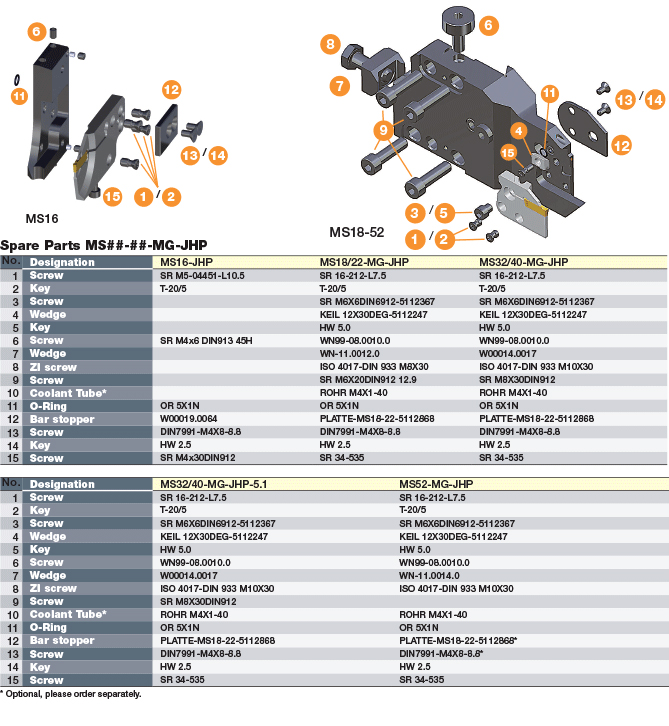

| Remarks | For assembly, spare parts and user guide, click on More Info All trademarks and logos are the property of their respective companies | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name

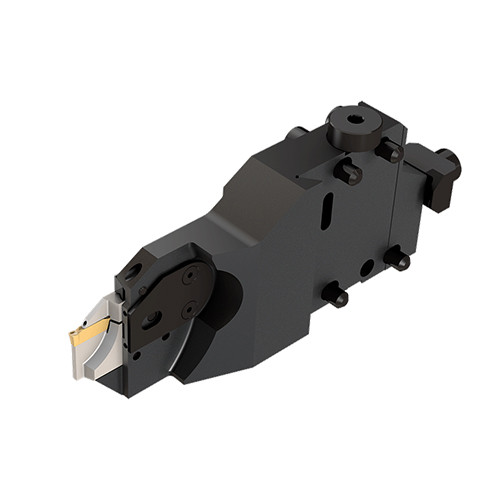

Parting Off Indexable Holders
FamilyName
MS##-##-MG-JHP
BrandName
Iscar
Related Documentation
All trademarks and logos are the property of their respective companies
