CGHN 32-5DG
CUT-GRIP double-ended blades for external grooving and turning self-clamped inserts.
Price: Log in For Price
Toote spetsifikatsioonid

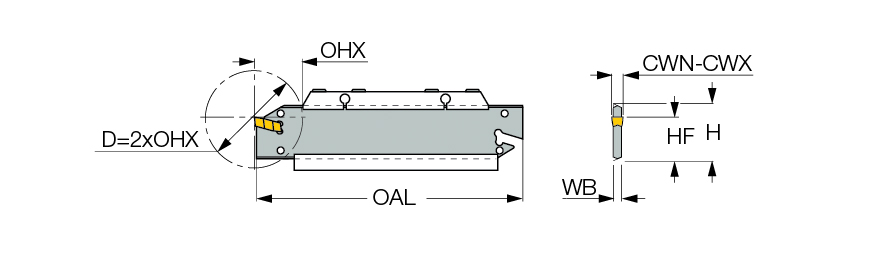

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 4.4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 6.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Width_2 (WB_2) | 4 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 37.38 mm |
| Number of Pocket (NOP) | 2 | Unit | M |
Toote omadused
| FamilyDesc | CUT-GRIP double-ended blades for external grooving and turning self-clamped inserts. | FamilyName | CGHN-DG |
| Remarks | DO-GRIP clamping insert is self-retained for long overhang When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.1440
Name
Parting Off Indexable Holders
FamilyName
CGHN-DG
BrandName
Iscar
