Toote spetsifikatsioonid
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Cutting Edge Material | Carbide |

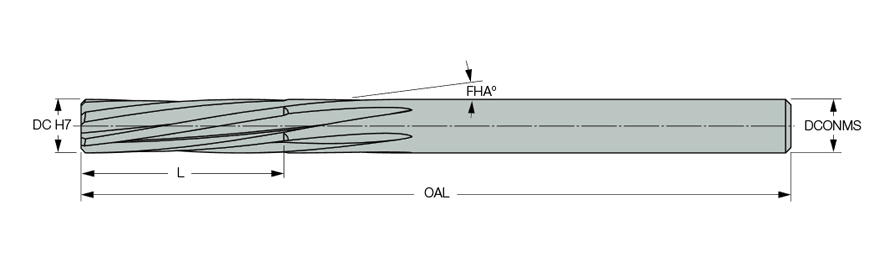

| Cutting Edge Length (L) | 18 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Body Material | Carbide |
| Overall Length (OAL) | 70 mm | Unit | M |
| Grade | IC07 |
Toote omadused

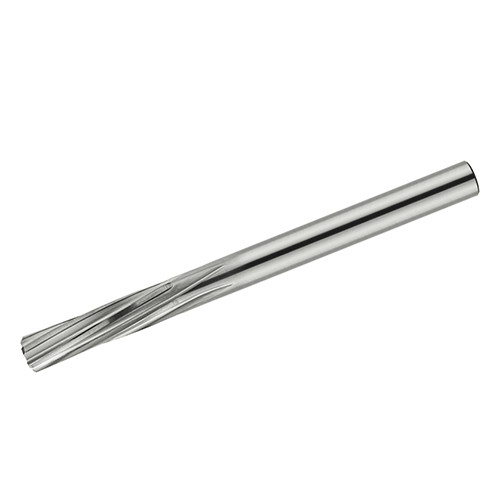

| FamilyDesc | DIN 212B solid carbide reamers with helical flutes and a cylindrical shank for through holes. | COO | Italy |

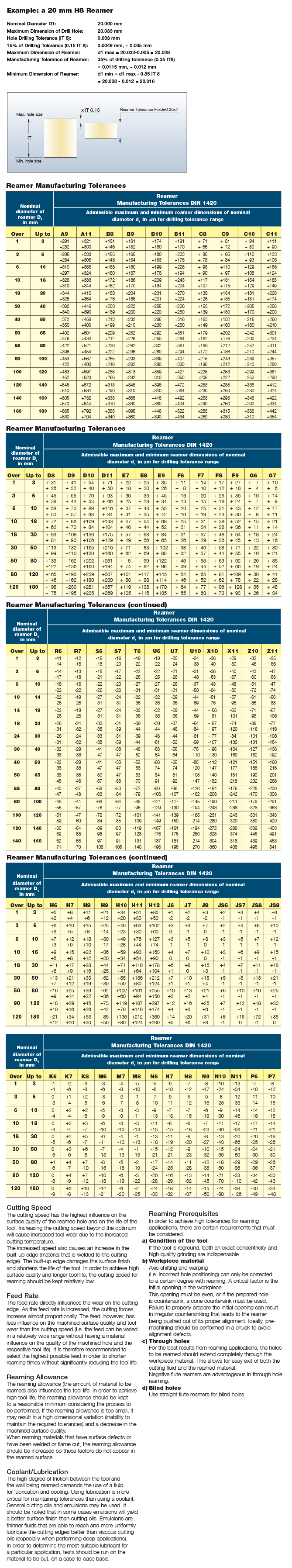

| Remarks | Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request |
Shipping Info
PackageWeight
0.0120
