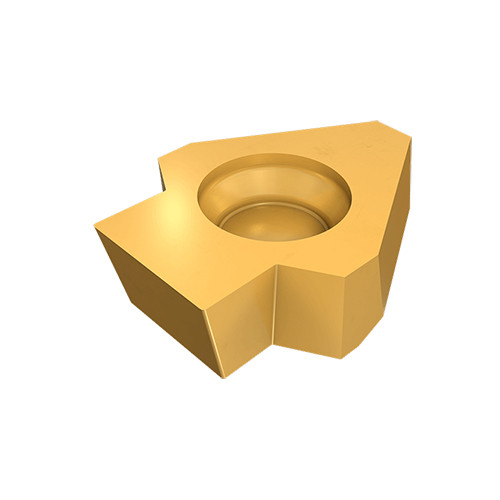

XNUWB 13-7.98-0.2 IC908
DIN6885 inserts for tight fit (P9) keyway broaching on lathe and milling machines.
Price: Log in For Price
Toote spetsifikatsioonid

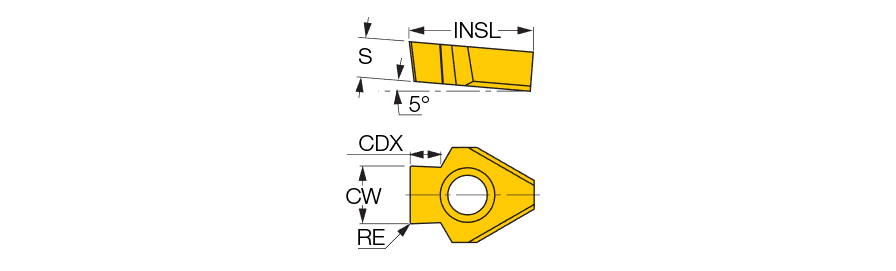

| Tool Type | Groove-Turn Utility Inserts | Insert Length (INSL) | 17.3 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 5.3 mm |
| Cutting Depth Maximum (CDX) | 4.1 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Application | | Ext. Broaching | Int. Broaching | |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Measurement Type | Metric |
Toote omadused
| FamilyDesc | DIN6885 inserts for tight fit (P9) keyway broaching on lathe and milling machines. | COO | Israel |
| Remarks | Typical conditions: Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm |
Shipping Info
PackageWeight
0.0114
