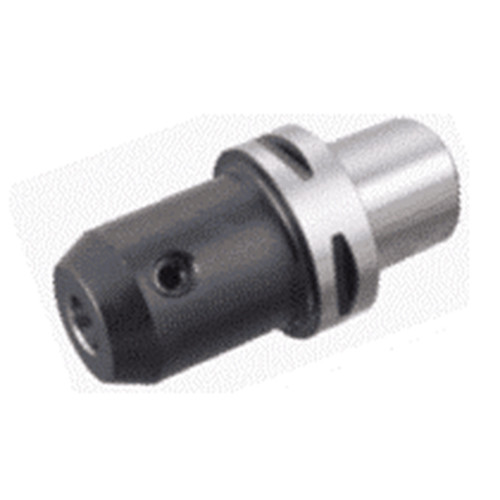

C6 EM16X85 E
DIN1835 form E (whistle notch) drill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks.
Price: Log in For Price
Toote spetsifikatsioonid

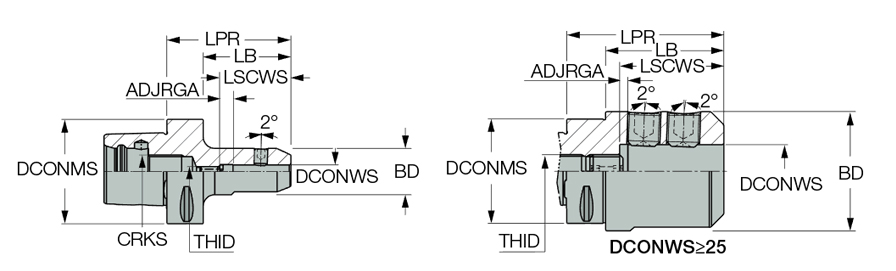

| Shank Size (SS) | 63 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 85 mm | Measurement Type | Metric |
| Body Length (LB) | 63 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M20 |
Toote omadused
| FamilyDesc | DIN1835 form E (whistle notch) drill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | FamilyName | C#-EM-E |
| Remarks | The adjustment screw has an internal coolant hole. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.5820
Name
Drill Chucks & Adapters
FamilyName
C#-EM-E
BrandName
Iscar
