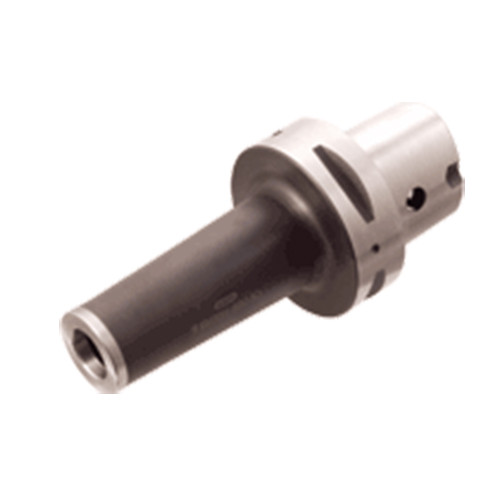

C6 ODP 12X55
FLEX-FIT threaded connection shanks with CAMFIX (ISO 26623-1) adaptation
Price: Log in For Price
Toote spetsifikatsioonid

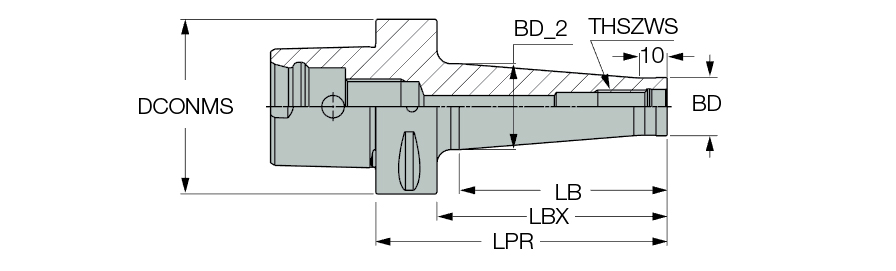

| Shank Size (SS) | 63 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 |
| Protruding Length (LPR) | 55 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 25 mm | Measurement Type | Metric |
| Body Diameter (BD) | 23.5 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
Toote omadused
| FamilyDesc | FLEX-FIT threaded connection shanks with CAMFIX (ISO 26623-1) adaptation | FamilyName | C#-ODP (FLEX-FIT) |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.9180
Name
Drill Chucks & Adapters
FamilyName
C#-ODP (FLEX-FIT)
BrandName
Iscar
