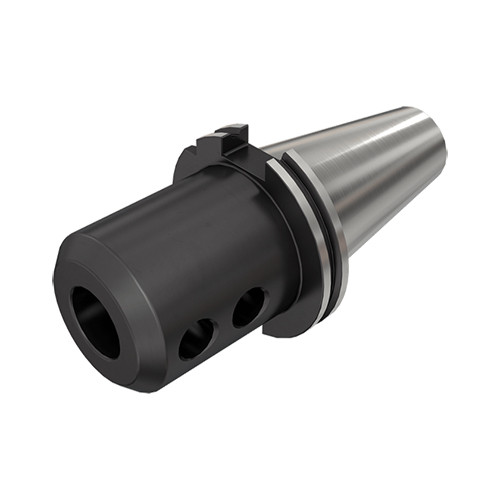

DIN69871 40 EM12X 50

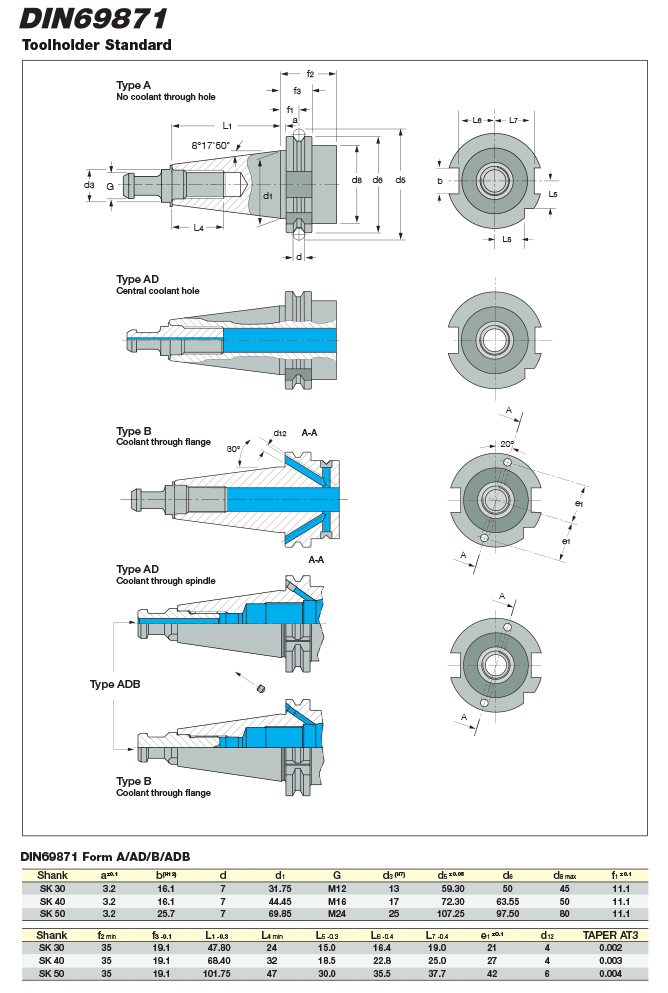

DIN 69871 form AD taper shanks holders with DIN 6359-HB for DIN 1835 form B Weldon shanks
Price: Log in For Price
Toote spetsifikatsioonid

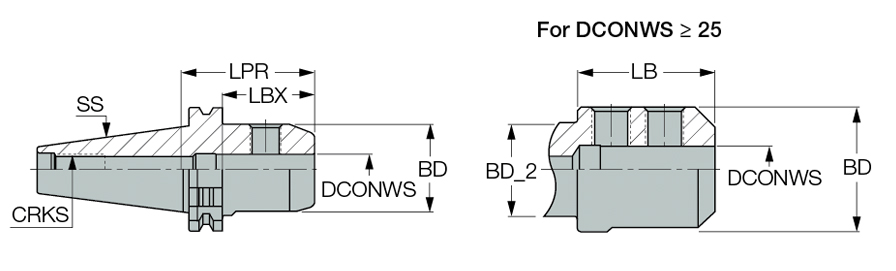

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 42 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 50 mm | Body Material | Steel |
| Overall Length (OAL) | 118.4 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Measurement Type | Metric | Unit | M |
Toote omadused
| FamilyDesc | DIN 69871 form AD taper shanks holders with DIN 6359-HB for DIN 1835 form B Weldon shanks | FamilyName | DIN69871-EM (DIN 6359-HB) |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Italy |
Shipping Info
PackageWeight
1.1020
Name
End Mill Holders
FamilyName
DIN69871-EM (DIN 6359-HB)
BrandName
Iscar
