HSK A63 EM8X65 CX

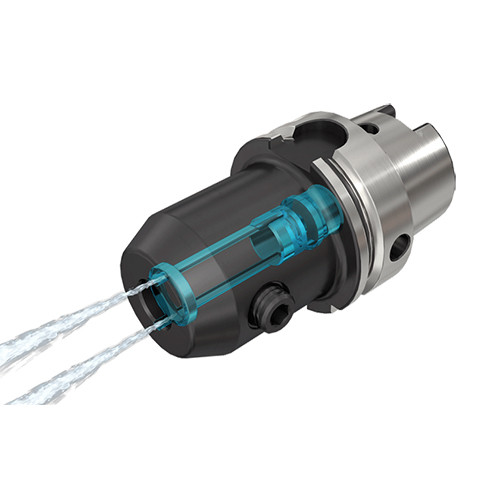

DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks and jet coolant grooves along the shank bore
Price: Log in For Price
Toote spetsifikatsioonid

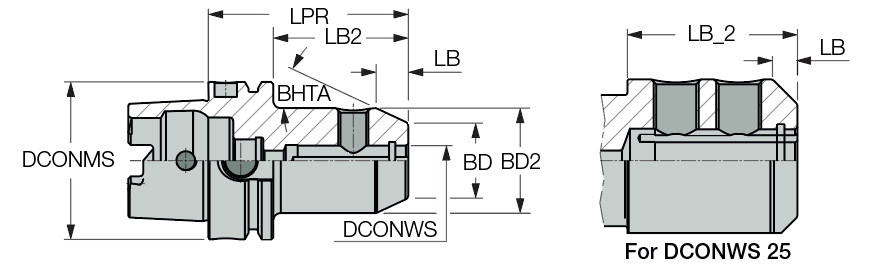

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Tool Type | HSK |
| Body Diameter (BD) | 20 mm | Body Material | Steel |
| Protruding Length (LPR) | 65 mm | Connection Code Machine Side (CCMS) | HSK |
| Measurement Type | Metric | Unit | M |
| Shank Size (SS) | 63 |
Toote omadused
| FamilyDesc | DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks and jet coolant grooves along the shank bore | FamilyName | HSK A-EM-CX |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | China |
Shipping Info
PackageWeight
0.8560
Name
End Mill Holders
FamilyName
HSK A-EM-CX
BrandName
Iscar
