DIN2080 40 SEM 32X 23

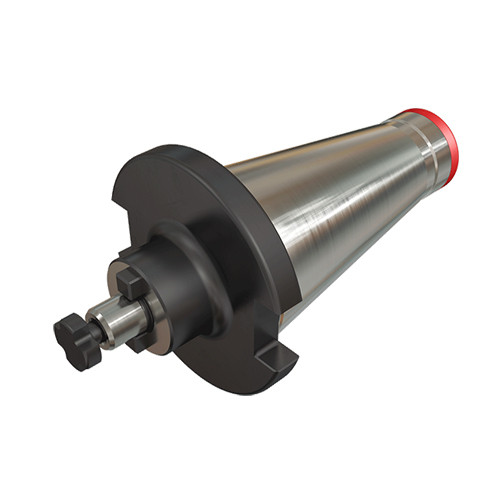

DIN 3937 shell mill holders with DIN 2080 A tapered shanks.
Price: Log in For Price
Toote spetsifikatsioonid

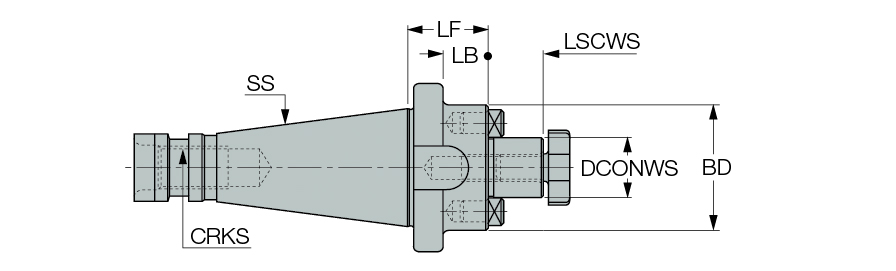

| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | DIN 2080 |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Functional Length (LF) | 23 mm | Body Material | Steel |
| Body Diameter (BD) | 66 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 24 mm |
Toote omadused
| FamilyDesc | DIN 3937 shell mill holders with DIN 2080 A tapered shanks. | FamilyName | DIN2080-SEM |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Italy |
Shipping Info
PackageWeight
1.2600
Name
Shell Mill Holders
FamilyName
DIN2080-SEM
BrandName
Iscar
