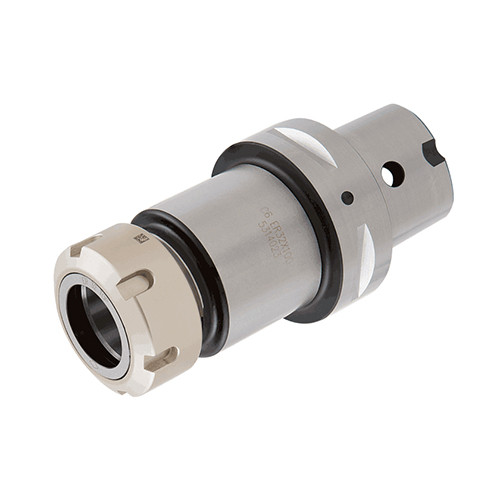

C3 ER16X45
DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks.
Price: Log in For Price
Toote spetsifikatsioonid

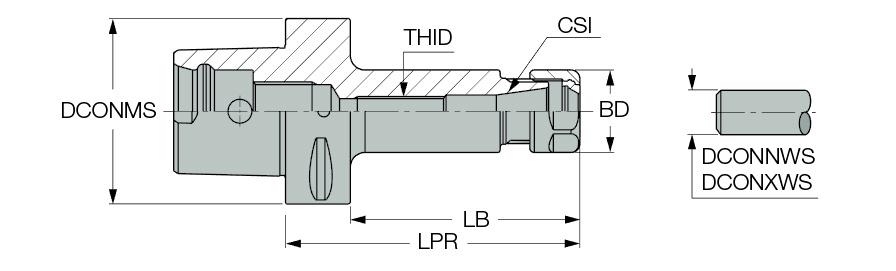

| Shank Size (SS) | 32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 45 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Toote omadused
| FamilyDesc | DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | FamilyName | C#-ER |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.2130
Name
Collet Chucks
FamilyName
C#-ER
BrandName
Iscar
