ST 16X 38 ER11 MF
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.
Price: Log in For Price

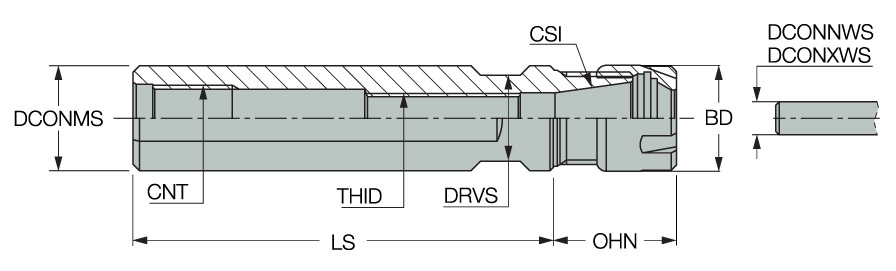

Toote spetsifikatsioonid
| Shank Size (SS) | 16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Body Diameter (BD) | 16 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 18.5 mm | Drive Size (DRVS) | 14 mm |
| Shank Length (LS) | 38 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Unit | M |
Toote omadused
| FamilyDesc | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | FamilyName | ST-ER-MF (mini flat) |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0680
Name
Collet Chucks
FamilyName
ST-ER-MF (mini flat)
BrandName
Iscar
