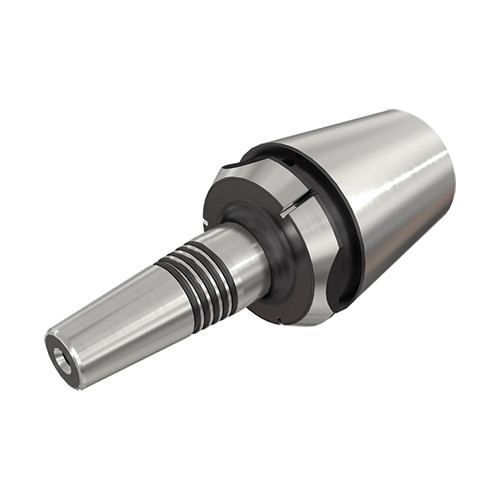

ER32 SRK 5/16X1.500 JET2
SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only.
Price: Log in For Price
Toote spetsifikatsioonid

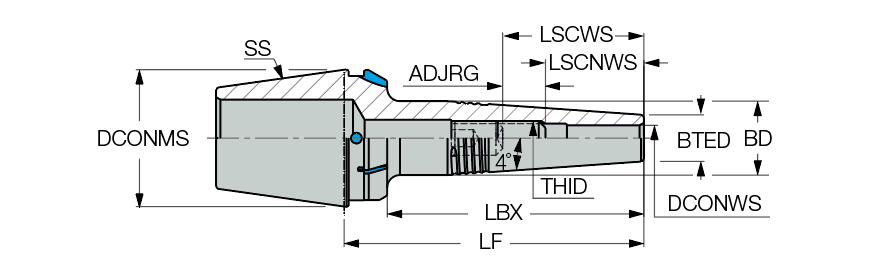

| Connection Diameter Workpiece Side (DCONWS) | 0.312″ | Clamping Length Workpiece Side (LSCWS) | 1.22″ |
| Shank Size (SS) | ER32 | Measurement Type | Inch |
| Body Length (LB) | 1.44″ | Tool Type | Accessories and Devices |
| Body Length Maximum (LBX) | 1-1/2″ | Body Material | Steel |
| Overall Length (OAL) | 3.075″ | Unit | I |
Toote omadused
| FamilyDesc | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | FamilyName | ER-SRK-JET2 |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.4321
Name
Shrink Fit Holders
FamilyName
ER-SRK-JET2
BrandName
Iscar
