MTE D09.5-1-W20-12

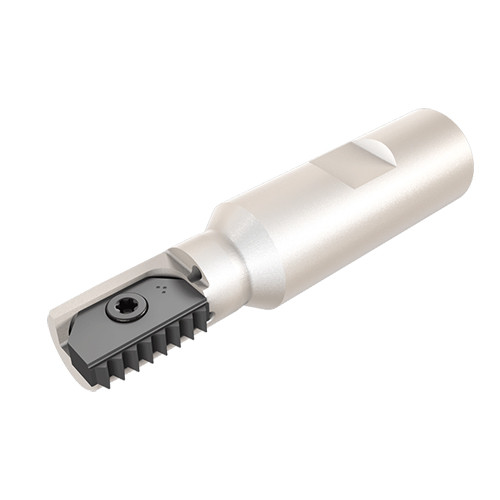

Indexable threading endmills with Weldon shank and coolant holes.
Price: Log in For Price
Toote spetsifikatsioonid

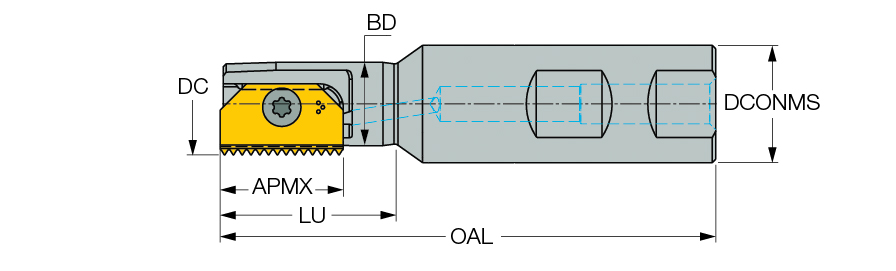

| Cutting Diameter (DC) | 9.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 85 mm | Measurement Type | Metric |
| Flute Count (NOF) | 1 | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 15.5 mm | Body Diameter (BD) | 7.5 mm |
| Shank Type | Weldon | Unit | M |
| Body Material | Steel |
Toote omadused
| FamilyDesc | Indexable threading endmills with Weldon shank and coolant holes. | COO | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
PackageWeight
0.2260
