Toote spetsifikatsioonid
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Tool Type | PS BT-MAS |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 75 Degrees |
| Body Length (LB) | 20 mm | Body Material | Steel |
| Overall Length (OAL) | 54 mm | Unit | M |
| Application | | Collets & Accessories | |
Toote omadused
| FamilyDesc | SK Pull Stud with DIN 69872 Retention Knob | FamilyName | PS SK-DIN (Pull Stud) |

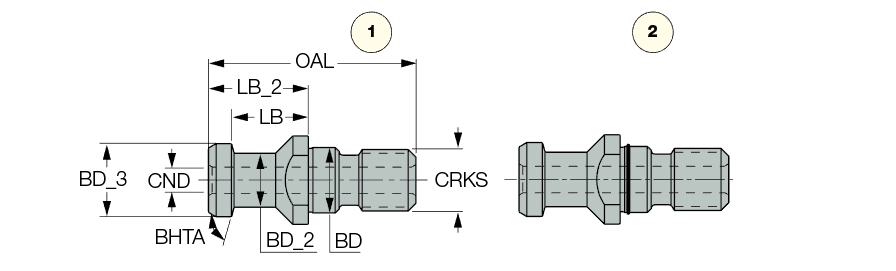

| Remarks | Coolant holes only in items with a B suffix Fig 1: Without or with coolant holes Fig 2: Without or with coolant holes and external O-ring | BrandName | Iscar |
| COO | Italy |
Shipping Info
PackageWeight
0.0790
Name

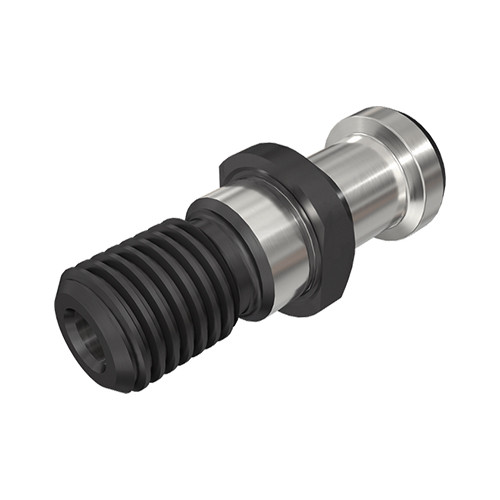

Pull Studs (Retention Knobs)
FamilyName
PS SK-DIN (Pull Stud)
BrandName
Iscar
