PS CAT40 45 5/8 ANSI B

Name: PS CAT40 45 5/8 ANSI B
Brand: Accessories
SKU: ISC4503116
Price: 42.99 EUR
Availability: InStock

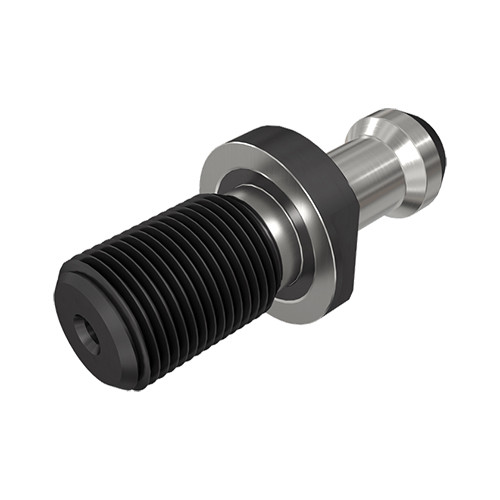

CAT Pull Stud ANSI Retention Knobs

Nimetus # ISC4503116

BrandName: Iscar

Tootja nr: 4503116

Toote spetsifikatsioonid

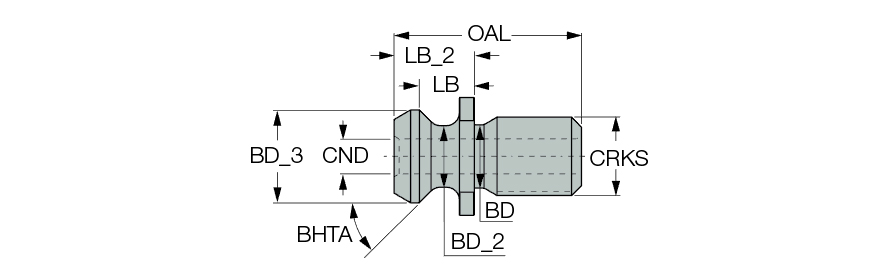

Shank Size (SS)	40	Measurement Type	Inch
Body Diameter (BD)	0.49″	Tool Type	PS CAT
Connection Retention Knob Thread Size (CRKS)	‎5/8-11	Body Half Taper Angle (BHTA)	45 Degrees
Body Length (LB)	0.439″	Body Material	Steel
Overall Length (OAL)	‎1-1/2″	Unit	I
Application	\| Collets & Accessories \|

FamilyDesc	CAT Pull Stud ANSI Retention Knobs	FamilyName	PS CAT-ANSI (Pull Stud)
Remarks	Coolant holes only in items with a B suffix	BrandName	Iscar
COO	Italy

PackageWeight

0.1279

Name

Pull Studs (Retention Knobs)

FamilyName

PS CAT-ANSI (Pull Stud)

BrandName

Iscar
