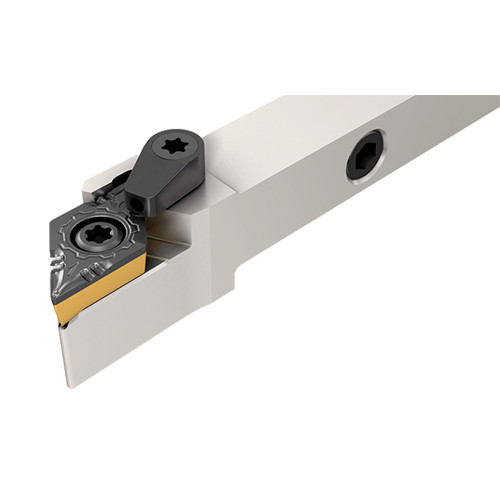

SDACL 1212H-13S-SL-JHP
Screw lock tools with channels for high-pressure coolant for 55° positive rhombic inserts for swiss automatic machines. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.
Price: Log in For Price
Toote spetsifikatsioonid

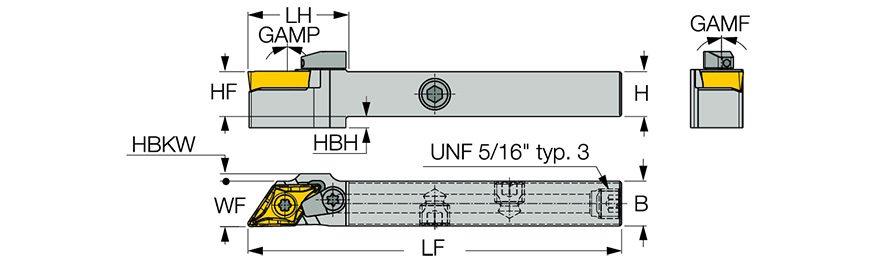

| Shank Height (H) | 12 mm | Application | | Ext. 55° Diamond 91° Approach | |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 27 mm | Body Material | Steel |
| Functional Width (WF) | 12.15 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 11 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |

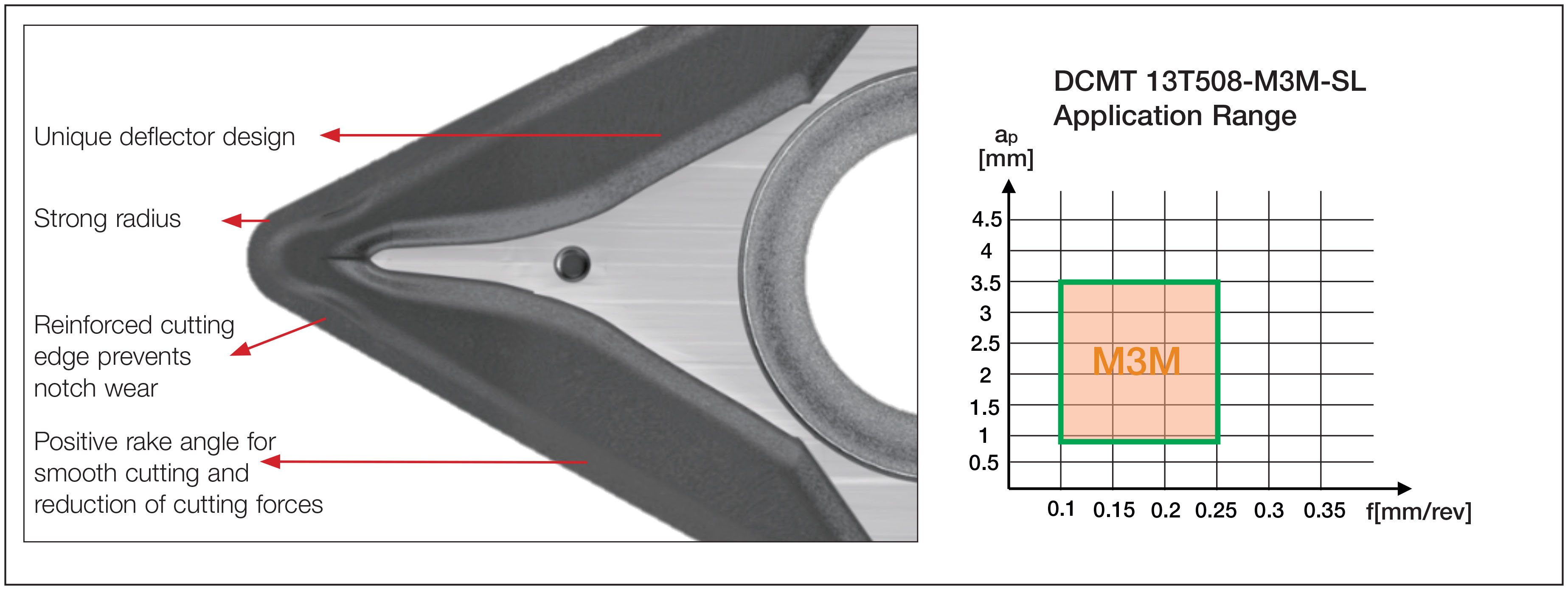

| Master Insert Identification (MIID) | DCMT 13T5-SL |
Toote omadused
| FamilyDesc | Screw lock tools with channels for high-pressure coolant for 55° positive rhombic inserts for swiss automatic machines. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. | FamilyName | SDACR/L-S-SL-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.1410
Name
General Indexable Turning Tools
FamilyName
SDACR/L-S-SL-JHP
BrandName
Iscar
