Toote spetsifikatsioonid

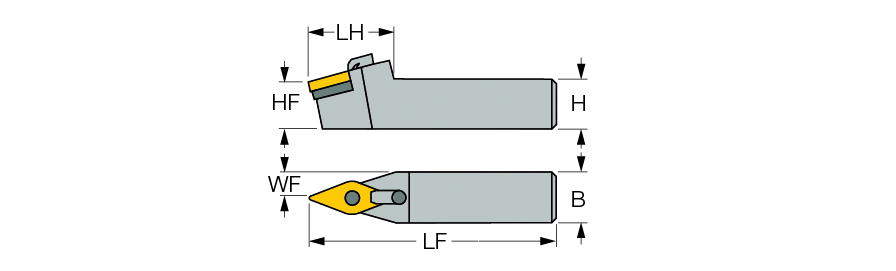

| Shank Height (H) | 1″ | Application | | Ext. 35° Diamond 72.5° Approac | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -14 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.89″ | Body Material | Steel |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Unit | I |
| Master Insert Identification (MIID) | VNMG 33.. |
Toote omadused
| FamilyDesc | Pin and clamp tools carrying 35° negative rhombic inserts. | FamilyName | MVVNN |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
1.6491
Name
General Indexable Turning Tools
FamilyName
MVVNN
BrandName
Iscar
