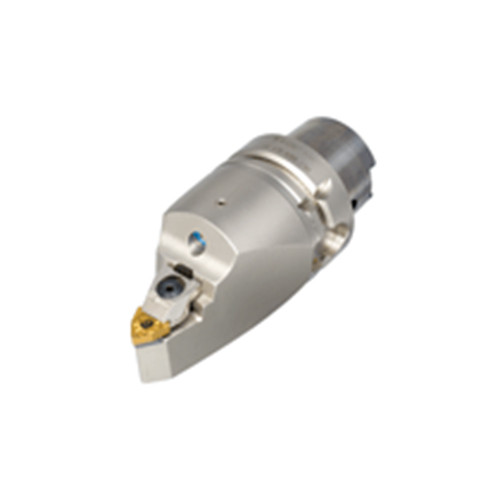

HSK A63WH MUMNN J12MW
MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic with trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard
Price: Log in For Price
Toote spetsifikatsioonid

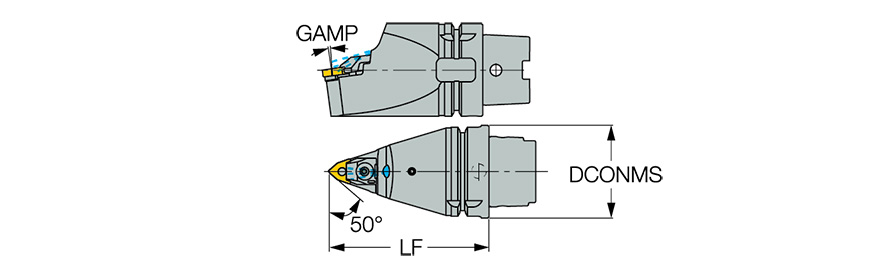

| Overall Length (OAL) | 142 mm | Rake Angle Axial (GAMP) | -7 Degrees |
| Functional Length (LF) | 110 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Master Insert Identification (MIID) | W/C/SNMG 1204 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | | Unit | M |
Toote omadused
| FamilyDesc | MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic with trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard | FamilyName | HSK A63WH-MUMNN-MW |

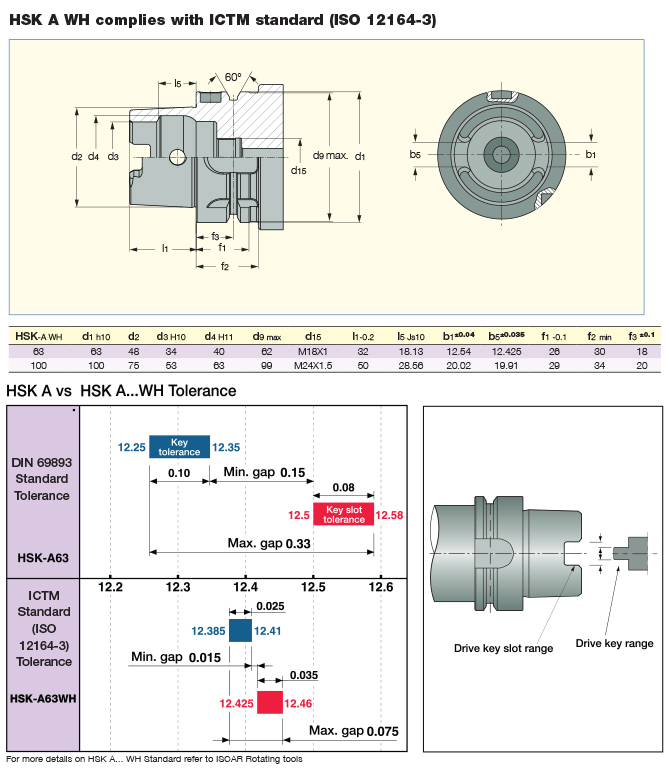

| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.8340
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-MUMNN-MW
BrandName
Iscar
