DCLNR 2020K-12

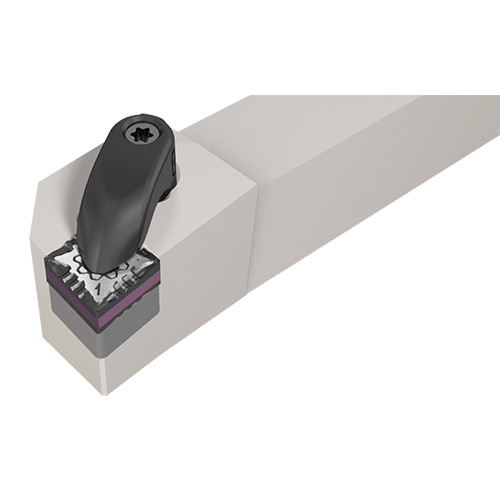

R-clamp tools with 95° lead angle carrying 80° negative rhombic inserts.
Price: Log in For Price
Toote spetsifikatsioonid

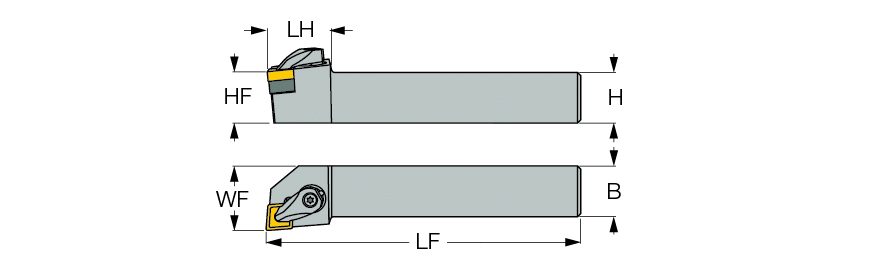

| Shank Height (H) | 20 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMG 1204 CNMX 1207 |
Toote omadused
| FamilyDesc | R-clamp tools with 95° lead angle carrying 80° negative rhombic inserts. | FamilyName | DCLNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.4490
Name
General Indexable Turning Tools
FamilyName
DCLNR/L
BrandName
Iscar
