Toote spetsifikatsioonid
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 9.12 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | SNMG | Min D.O.C. | 5 mm |

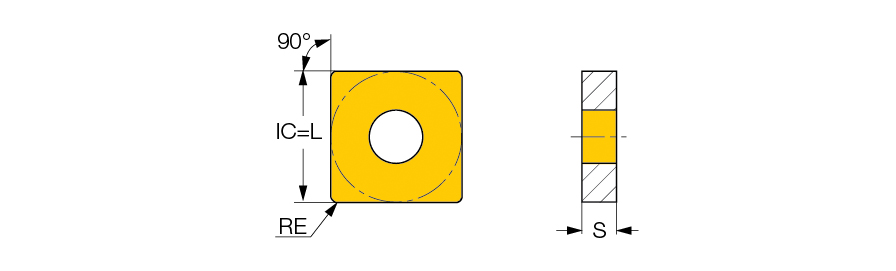

| Corner Radius (RE) | 2.4 mm | Depth of Cut Maximum (APMX) | 15 mm |
| Insert Size | 250924 | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 25.4 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Insert Thickness (S) | 9.52 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 25.4 mm | Chip Breaker Type | NR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
Toote omadused

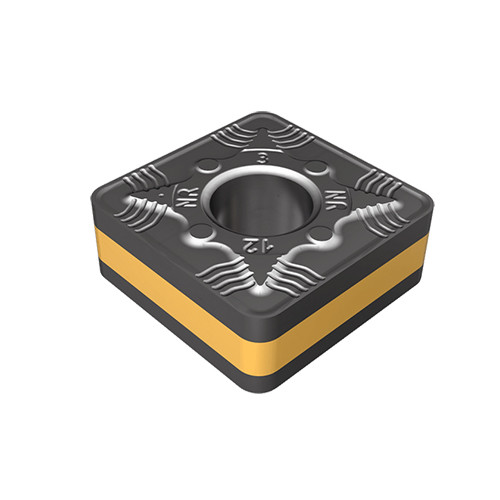

| FamilyDesc | Double-sided square inserts with a strong cutting edge, positive chipformer, free chip flow for semi-roughing and roughing applications. | FamilyName | SNMG-NR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0784
Name
Turning Indexable Inserts
FamilyName
SNMG-NR
BrandName
Iscar
