Ext. 60° Triangle 60° Approach Ext. 60° Triangle 91° Approach Ext. 60° Triangle 93° Approach Ext. 60° Triangle Facing Int. 60° Triangle 91° Approach Int. 60° Triangle 95° Approach
See all 46 in this Product Family

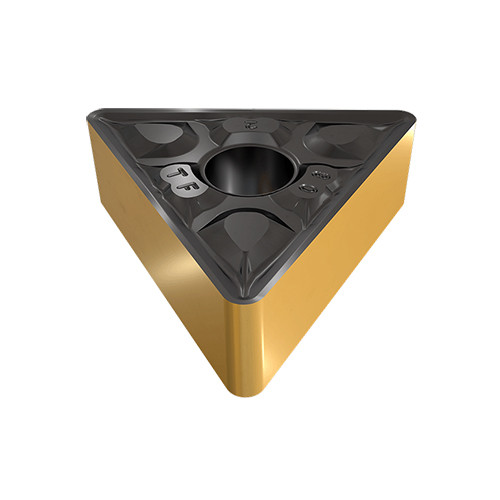

TNMG 220404-TF IC9150

Double-sided, triangular insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
ISOTURN
Nimetus # ISC5507678
BrandName: Iscar
Tootja nr: 5507678
Price: Log in For Price
Quantity Available
loading...

Toote spetsifikatsioonid

Applicable Material | Steel | Cast Iron | Tool Type Turn Negative Inserts
Application | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | Min D.O.C. 1 mm
Corner Radius (RE) 0.4 mm Depth of Cut Maximum (APMX) 3.5 mm
Insert Size 431-TF Min. Turning Feed (ft(min)) 0.14 mm/rev
Cutting Edge Length (L) 22 mm Max. Turning Feed (ft(max)) 0.35 mm/rev
Insert Thickness (S) 4.76 mm Clearance Angle Major (AN) 0 Degrees
Inscribed Circle Diameter (IC) 12.7 mm Chip Breaker Type TF
Cutting Edge Material Carbide Measurement Type Metric
Coating TiCN+Al2O3+TiN Body Material Carbide
Grade IC9150 Unit M
TNMG 220404-TF IC9150

Toote omadused

FamilyDesc Double-sided, triangular insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. FamilyName TNMG-TF
Remarks For dimensions and tolerances, see more info. BrandName Iscar
COO Israel

Shipping Info

PackageWeight
0.0147
Name
Turning Indexable Inserts
FamilyName
TNMG-TF
BrandName
Iscar
