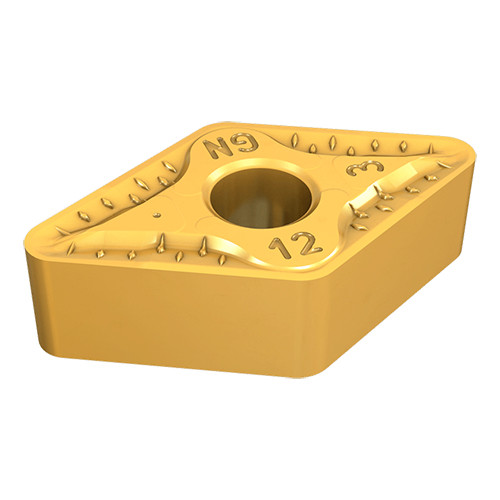

DNMG 150612-GN IC9350
Double-sided 55° rhombic inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 1.5 mm |

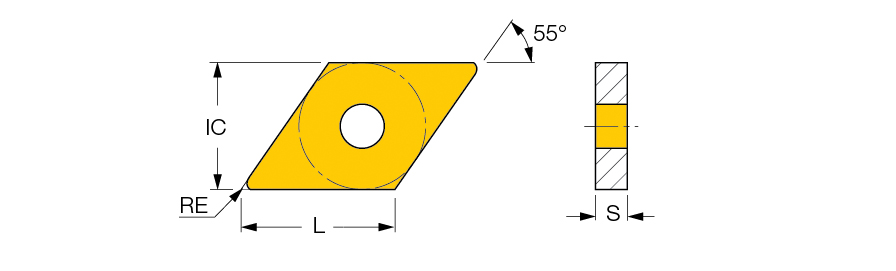

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 443-GN | Min. Turning Feed (ft(min)) | 0.18 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.43 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | GN |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+alpha Al2O3+TiN | Body Material | Carbide |
| Grade | IC9350 | Unit | M |
Toote omadused
| FamilyDesc | Double-sided 55° rhombic inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron. | FamilyName | DNMG-GN |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0173
Name
Turning Indexable Inserts
FamilyName
DNMG-GN
BrandName
Iscar
