E-SWUBR 4-5

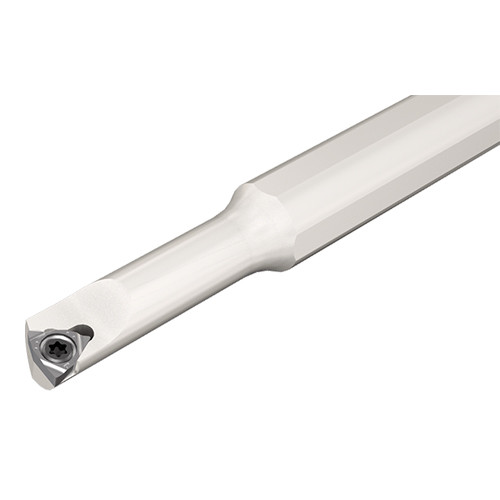

Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole.
Price: Log in For Price
Toote spetsifikatsioonid

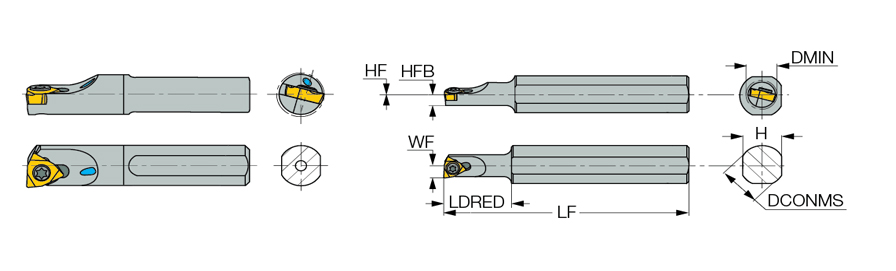

| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.22″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.14″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WB.. 520L | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.275″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Coolant Supply Property (CSP) | Coolant Thru |
Toote omadused
| FamilyDesc | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | FamilyName | E/S-SWUBR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.1477
Name
Indexable Internal Turning Tools
FamilyName
E/S-SWUBR/L
BrandName
Iscar
