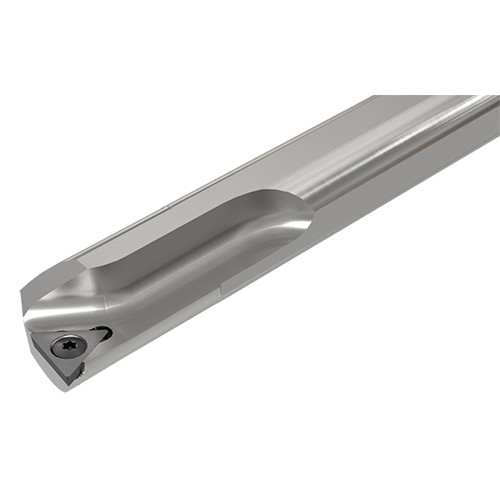

A12Q STLPR-11
Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole.
Price: Log in For Price
Toote spetsifikatsioonid

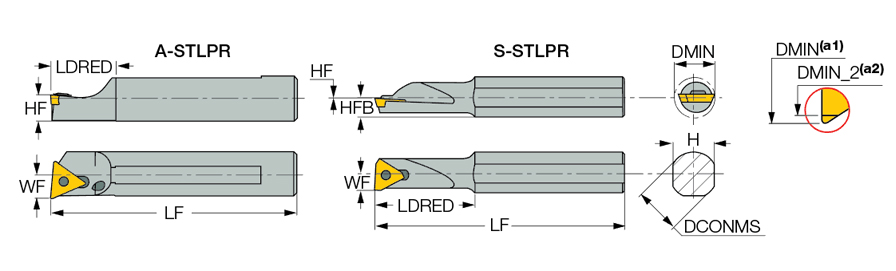

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 180 mm | Rake Angle Axial (GAMP) | 4 Degrees |
| Reduced Body Diameter Length (LDRED) | 18 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 11.5 mm | Minimum Bore Diameter_2 (DMIN_2) | 14 mm |
| Functional Width (WF) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 110204-PF | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Toote omadused
| FamilyDesc | Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole. | FamilyName | A/S-STLPR/L |
| Remarks | (a1) When used with insert TP.. 110204-.. (a2) When used with insert TPG. 110204-XL | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.1550
Name
Indexable Internal Turning Tools
FamilyName
A/S-STLPR/L
BrandName
Iscar
