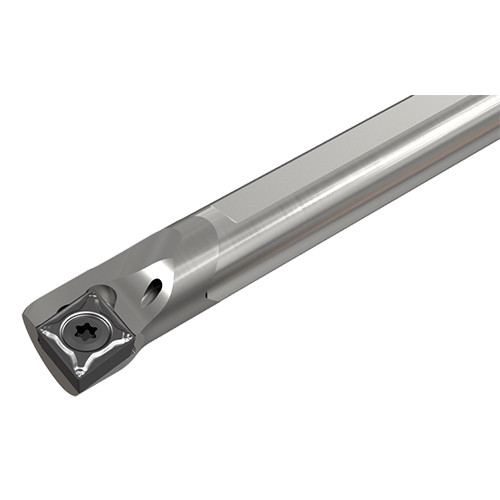

S-SCLCR 12-3
Screw lock boring bars for 80° rhombic inserts with 7° clearance
Price: Log in For Price
Toote spetsifikatsioonid

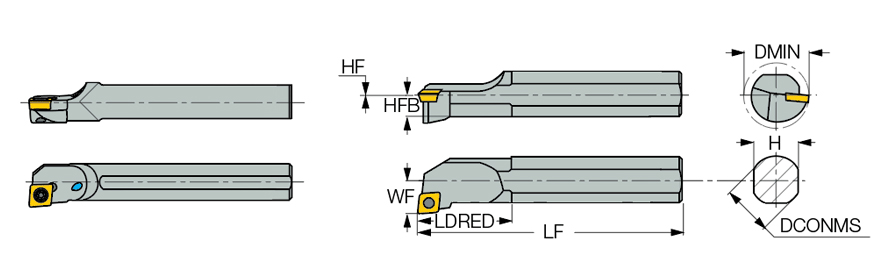

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 10″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.43″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.677″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 1/2″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CC.. 3 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.985″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Toote omadused
| FamilyDesc | Screw lock boring bars for 80° rhombic inserts with 7° clearance | FamilyName | A/E/S-SCLCR/L |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.2390
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-SCLCR/L
BrandName
Iscar
