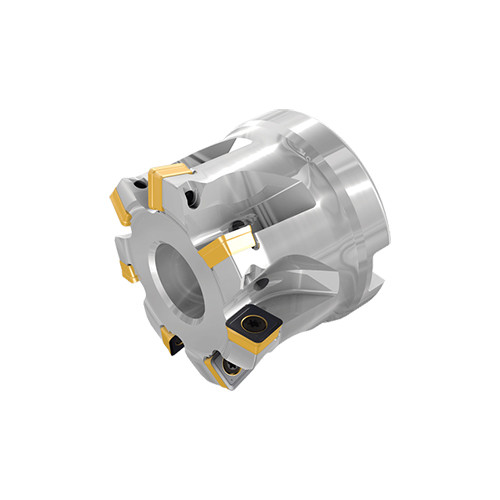

FFQ4 D40-05-16-09
Fast feed face mills carrying single-sided square Inserts with 4 cutting edges.
Price: Log in For Price
Toote spetsifikatsioonid

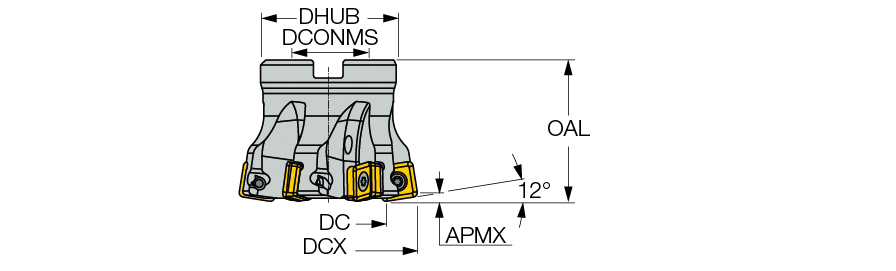

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter (DC) | 25.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.2 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 35 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 38 mm | Unit | M |
| Arbor Style | A |
Toote omadused
| FamilyDesc | Fast feed face mills carrying single-sided square Inserts with 4 cutting edges. | FamilyName | FFQ4 D-09 |

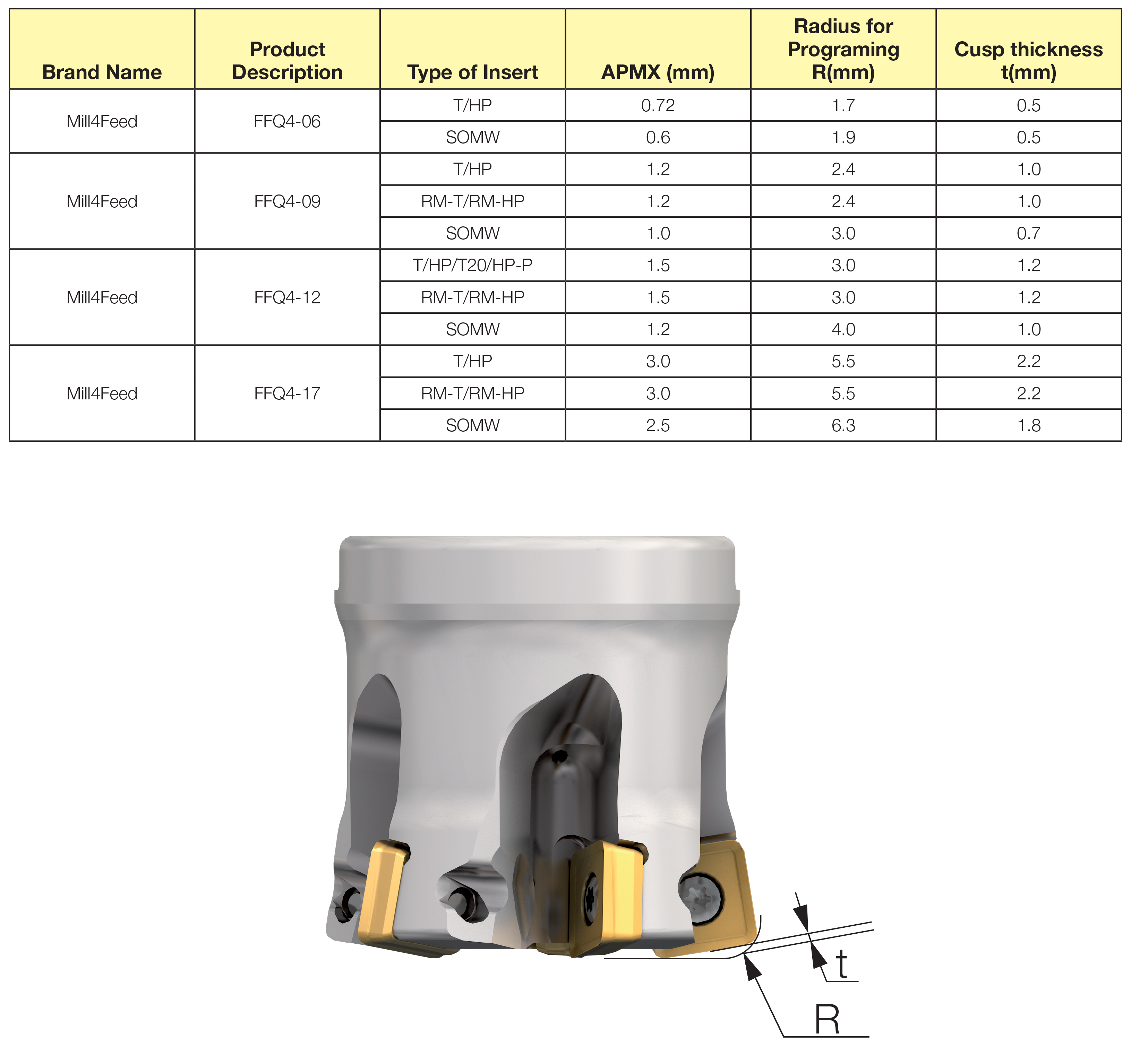

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm When mounting insert SOMW, APMX=1.0 mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.2710
Name
Indexable Face Mills
FamilyName
FFQ4 D-09
BrandName
Iscar
