MXBB120L09-SG-02S06 TT5523

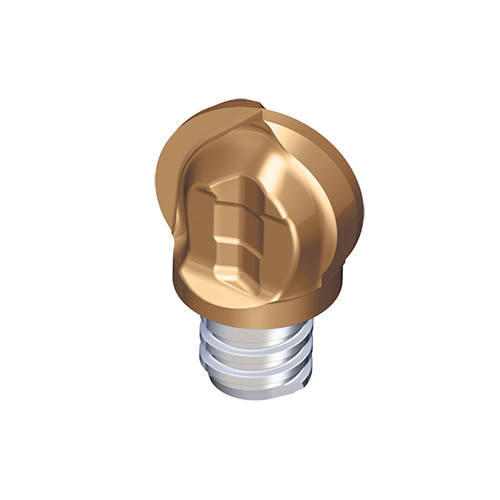

Interchangeable solid carbide Spherical Ball nose mill heads with 2 flute
Price: Log in For Price
Toote spetsifikatsioonid

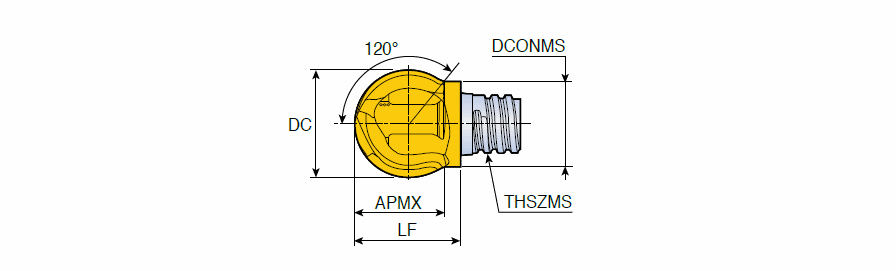

| Application | | Profiling | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | S06 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9 mm | Protruding Length (LPR) | 11.6 mm |
| Connection Diameter Machine Side (DCONMS) | 9.5 mm | Body Material | Carbide |
| Functional Length (LF) | 11.6 mm | Unit | M |
Toote omadused
| FamilyDesc | Interchangeable solid carbide Spherical Ball nose mill heads with 2 flute | FamilyName | MXBB-SG-02 |

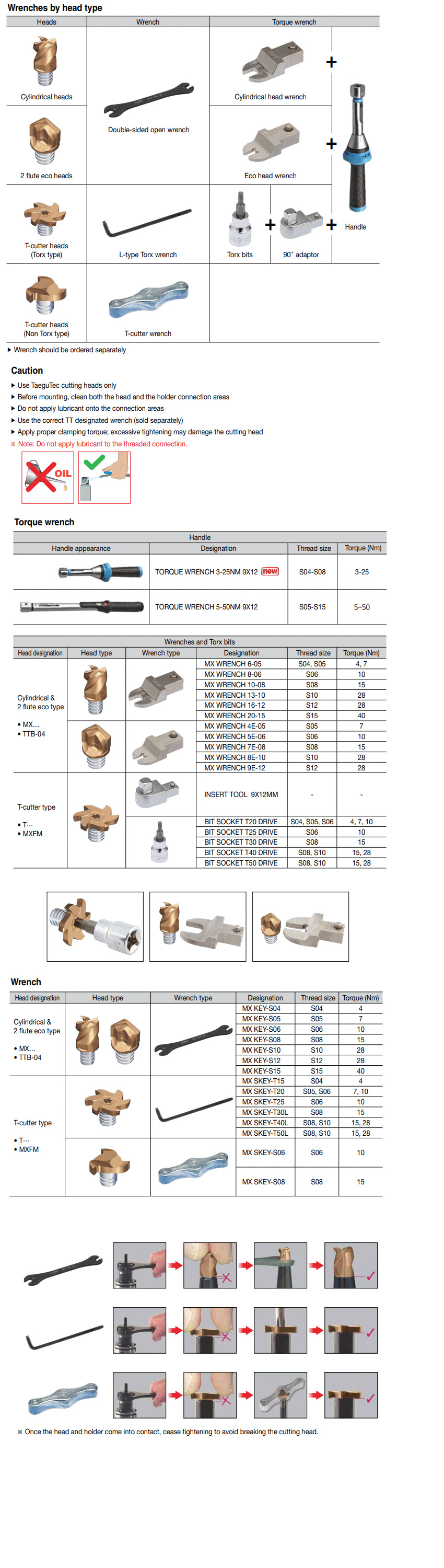

| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
PackageWeight
0.0175
Name
Solid End Mill Heads
FamilyName
MXBB-SG-02
BrandName
Taegutec
Related Documentation
Related Items
