Toote spetsifikatsioonid

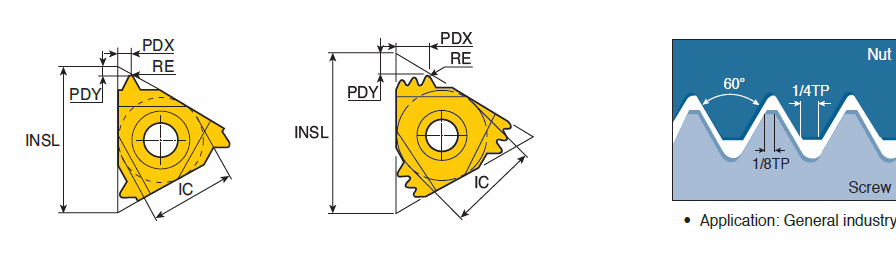

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 16 mm | Application | | Internal Threading | |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | |
| Corner Radius (RE) | 0.12 mm | Measurement Type | Metric |
| Grade | P30 | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Toote omadused
| FamilyDesc | Internal ISO metric full profile threading inserts for general industry | FamilyName | IR/L-ISO |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0046
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ISO
BrandName
Taegutec
